SKU: HMK2025C-NTN

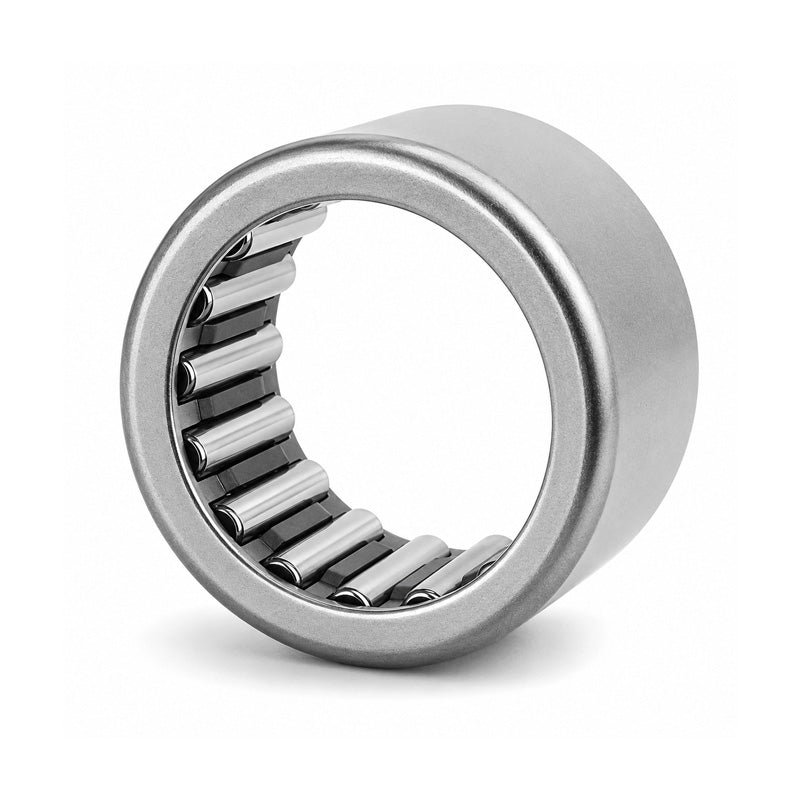

NTN HMK2025C Drawn Cup Needle Roller Bearing with Open End 20x27x25mm - Allow 2-3 Days
NTN HMK2025C Drawn Cup Needle Roller Bearing with Open End 20x27x25mm - Allow 2-3 Days
Regular price
Rs. 847.48
Regular price
Sale price
Rs. 847.48
Taxes included.
In stock
Price Break
5+
Rs. 839.01
10+
Rs. 805.11
20+
Rs. 788.16
50+
Rs. 762.73
100+
Rs. 745.78
500+
Rs. 703.41
1000+
Rs. 593.24
Description
Description
HMK Type Drawn Cup Needle Roller Bearings: These bearings deliver superior load capacity compared to the standard HK series, featuring a thicker outer wall (increased outer diameter) for heavy-duty performance. Characterised by a low sectional height and compact design, they are an economical solution for high-load applications. Available in both open and sealed varieties.
Benefits: Enhanced radial load rating, reinforced outer width, and space-saving design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 27mm
- Width:
- 25mm
Technical
Technical
| Fw - Inside diameter | 20mm |
|---|---|
| D - Outside diameter | 27mm |
| C - Width of bearing, drawn cup or outer ring | 25mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR15X20X26 |
| Cr - Dynamic load rating | 22 kN |
| C0r - Static load rating | 34 kN |
| N - Grease lubrication limit speed | 8000 tr/min |
| N - Oil lubrication limit speed | 12000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
