NTN HMK1012L/3AS Drawn Cup Needle Roller Bearing with Open End 10x17x12mm
NTN HMK1012L/3AS Drawn Cup Needle Roller Bearing with Open End 10x17x12mm
Regular price
Rs. 682.34
Regular price
Sale price
Rs. 682.34
Taxes included.
In stock
Price Break
10+
Rs. 607.28
19+
Rs. 573.17
29+
Rs. 566.34
39+
Rs. 559.52
49+
Rs. 552.70
74+
Rs. 545.87
99+
Rs. 511.76
199+
Rs. 504.93
249+
Rs. 498.11
499+
Rs. 491.28
999+
Rs. 477.64
Description
Description
HMK Type Drawn Cup Needle Roller Bearings: These bearings deliver superior load capacity compared to the standard HK series, featuring a thicker outer wall (increased outer diameter) for heavy-duty performance. Characterised by a low sectional height and compact design, they are an economical solution for high-load applications. Available in both open and sealed varieties.
Benefits: Enhanced radial load rating, reinforced outer width, and space-saving design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 17mm
- Width:
- 12mm

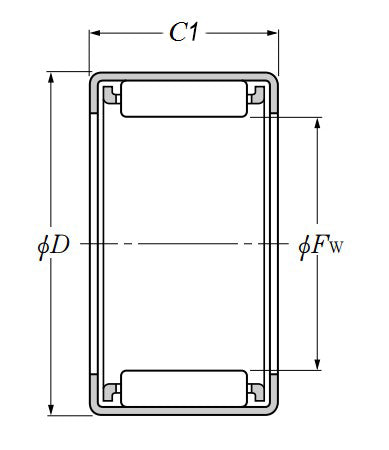

Technical
Technical
| Fw - Inside diameter | 10mm |
|---|---|
| D - Outside diameter | 17mm |
| C1 - Width of Drawn cup L | 12mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR7X10X16 |
| Cr - Dynamic load rating | 4.25 kN |
| C0r - Static load rating | 3.45 kN |
| N - Grease lubrication limit speed | 10000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
