SKU: HK4512-MB

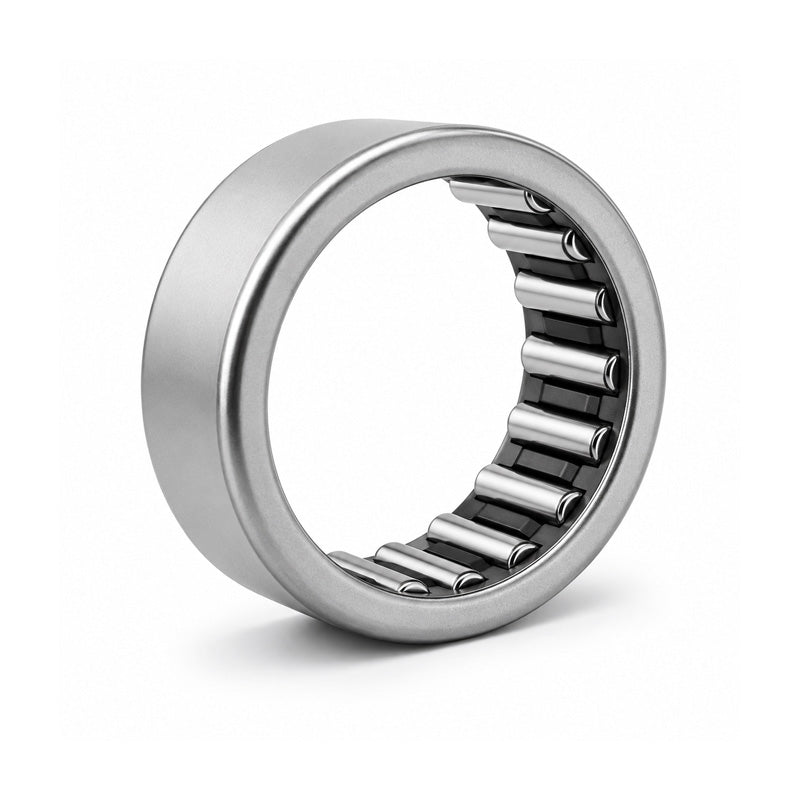

Major Brand HK4512 Drawn Cup Type Needle Roller Bearing with Two Open Ends 45x52x12mm
Major Brand HK4512 Drawn Cup Type Needle Roller Bearing with Two Open Ends 45x52x12mm
Regular price
Rs. 1,168.81
Regular price
Sale price
Rs. 1,168.81
Taxes included.
In stock
Price Break
10+
Rs. 1,040.24
19+
Rs. 981.80
29+
Rs. 970.11
39+
Rs. 958.42
49+
Rs. 946.74
74+
Rs. 935.05
99+
Rs. 876.61
199+
Rs. 864.92
249+
Rs. 853.23
499+
Rs. 841.54
999+
Rs. 818.17
Description
Description
|
HK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 52mm
- Width:
- 12mm
Technical
Technical
| Fw | 45mm |
|---|---|
| D | 52mm |
| C | 12mm |
| Dynamic load | 14200 N |
| Static load | 27500 N |
| Fatigue load limit Pu | 3200 N |
| Speed in grease | 4500 rpm |
| Speed in oil | 6300 rpm |
| r1r2 min | 0.8mm |
| Da max | 47mm |
| ra max | 0.8mm |
| Seal | G/SD45x52x4 |
| Weight | 33 g |
