SKU: HK4012-EU

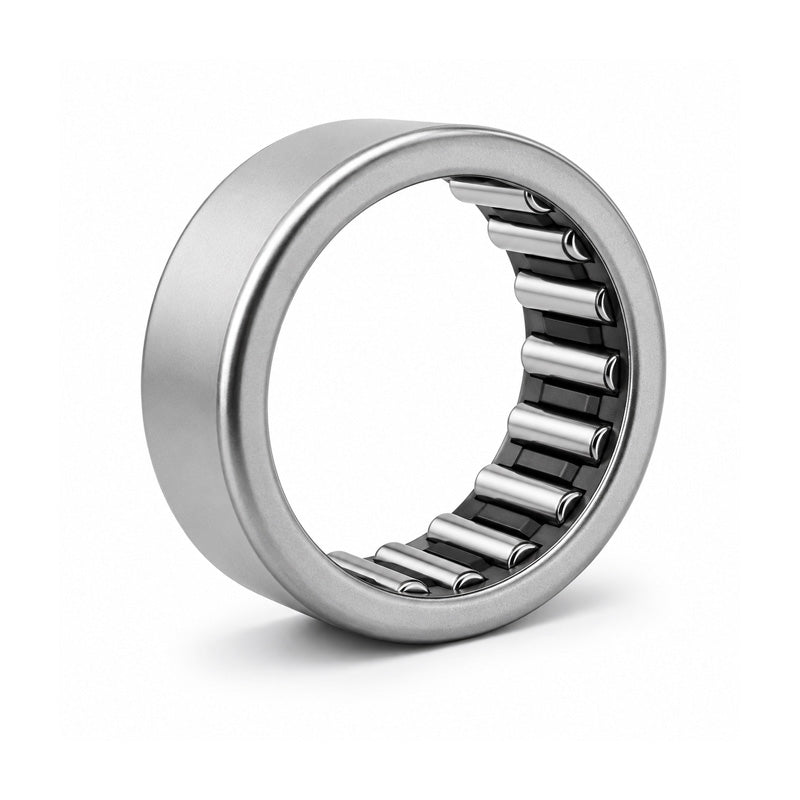

HK4012 Budget Drawn Cup Type Needle Roller Bearing Open End Type 40x47x12mm
HK4012 Budget Drawn Cup Type Needle Roller Bearing Open End Type 40x47x12mm
Regular price
Rs. 937.10
Regular price
Sale price
Rs. 937.10
Taxes included.
Equivalent to: TLA4012Z RHNA404712
In stock
Price Break
10+
Rs. 834.02
19+
Rs. 787.16
29+
Rs. 777.79
39+
Rs. 768.42
49+
Rs. 759.05
74+
Rs. 749.68
99+
Rs. 702.83
199+
Rs. 693.45
249+
Rs. 684.08
499+
Rs. 674.71
999+
Rs. 655.97
Description
Description
|
Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Equivalent: TLA4012Z RHNA404712
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 47mm
- Width:
- 12mm
Technical
Technical
| Fw | 40mm |
|---|---|
| D | 47mm |
| C | 12mm |
| Dynamic load C | 13400 N |
| Static load Co | 24500 N |
| Fatigue load limit Pu | 2800 N |
| Speed in grease | 5000 rpm |
| Speed in oil | 7000 rpm |
| r1r2 min | 0.8mm |
| Da max | 42mm |
| ra max | 0.8mm |
| Weight | 30 g |
