SKU: HK2220LL/3AS-NTN
NTN HK2220LL/3AS Drawn Cup Needle Roller Bearing with Open End 22x28x20mm - Allow 2-3 Days
NTN HK2220LL/3AS Drawn Cup Needle Roller Bearing with Open End 22x28x20mm - Allow 2-3 Days
Regular price
Rs. 705.38
Regular price
Sale price
Rs. 705.38
Taxes included.
In stock
Price Break
5+
Rs. 698.33
10+
Rs. 670.11
20+
Rs. 656.00
50+
Rs. 634.84
100+
Rs. 620.73
500+
Rs. 585.47
1000+
Rs. 493.77
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 28mm
- Width:
- 20mm
Technical
Technical

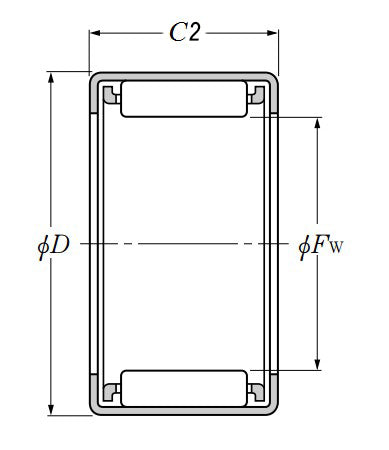

| Fw - Inside diameter | 22mm |
|---|---|
| D - Outside diameter | 28mm |
| C2 - Width of drawn cup LL | 20mm |
| C3 - Max drawn cup closed end thickness LL | 2.7mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR17X22X23 |
| Cr - Dynamic load rating | 13.6 kN |
| C0r - Static load rating | 22.1 kN |
| N - Grease lubrication limit speed | 7500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
