SKU: HK2030ZWD-NTN

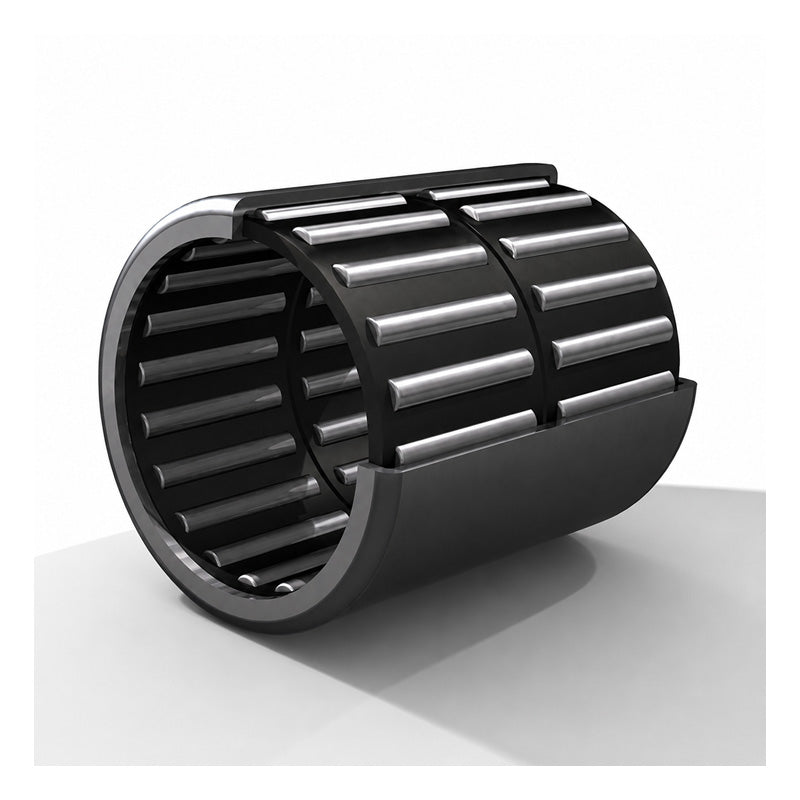

NTN HK2030ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 20x26x30mm
NTN HK2030ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 20x26x30mm
Regular price
Rs. 902.53
Regular price
Sale price
Rs. 902.53
Taxes included.
In stock
Price Break
10+
Rs. 803.25
19+
Rs. 758.13
29+
Rs. 749.10
39+
Rs. 740.07
49+
Rs. 731.05
74+
Rs. 722.02
99+
Rs. 676.90
199+
Rs. 667.87
249+
Rs. 658.85
499+
Rs. 649.82
999+
Rs. 631.77
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 26mm
- Width:
- 30mm
Technical
Technical
| Fw - Inside diameter | 20mm |
|---|---|
| D - Outside diameter | 26mm |
| C - Width of bearing, drawn cup or outer ring | 30mm |
| Lubrication hole on outer ring? | Yes |
| k - Lubrication hole diameter | 2.5mm |
| Inner ring reference | IR17X20X30.5 |
| Cr - Dynamic load rating | 22.2 kN |
| C0r - Static load rating | 40 kN |
| N - Grease lubrication limit speed | 8000 tr/min |
| N - Oil lubrication limit speed | 12000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
