SKU: HK1620.2RS-EU

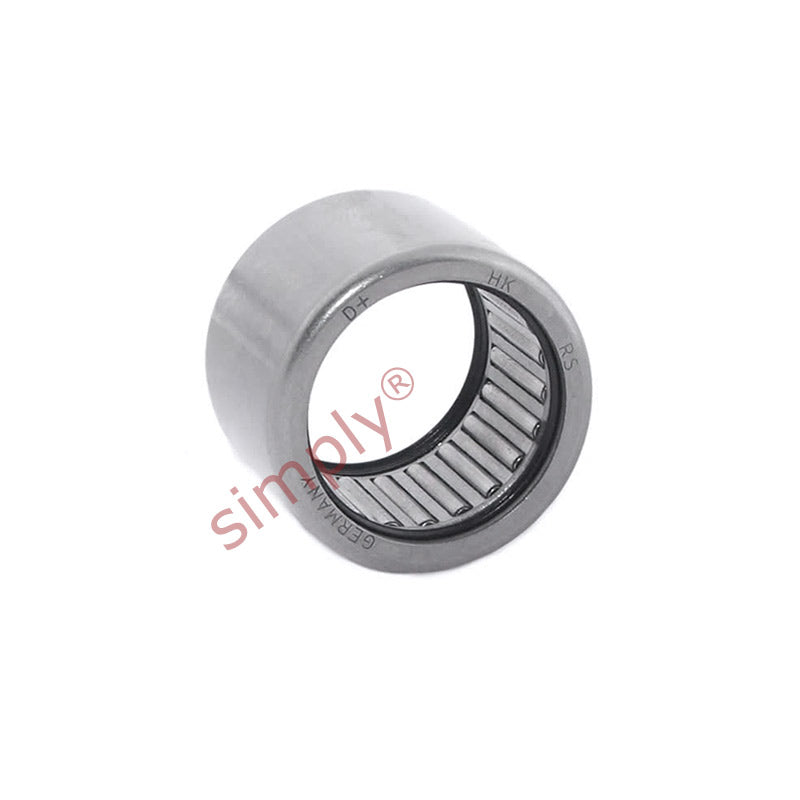

HK16202RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 16x22x20mm
HK16202RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 16x22x20mm
Regular price
Rs. 878.21
Regular price
Sale price
Rs. 878.21
Taxes included.
In stock
Price Break
10+
Rs. 781.61
19+
Rs. 737.70
29+
Rs. 728.91
39+
Rs. 720.13
49+
Rs. 711.35
74+
Rs. 702.57
99+
Rs. 658.66
199+
Rs. 649.88
249+
Rs. 641.09
499+
Rs. 632.31
999+
Rs. 614.75
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 22mm
- Width:
- 20mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 16mm |
|---|---|
| D | 22mm |
| C | 20mm |
| Dynamic load C | 11000 N |
| Static load Co | 14600 N |
| Fatigue load limit Pu | 1660 N |
| Speed in grease | 10000 rpm |
| r1r2 min | 0.8mm |
| Da max | 17mm |
| ra max | 0.8mm |
| Inner ring | IR12x16x22 |
| Weight | 18 g |
