SKU: HK0709-MB

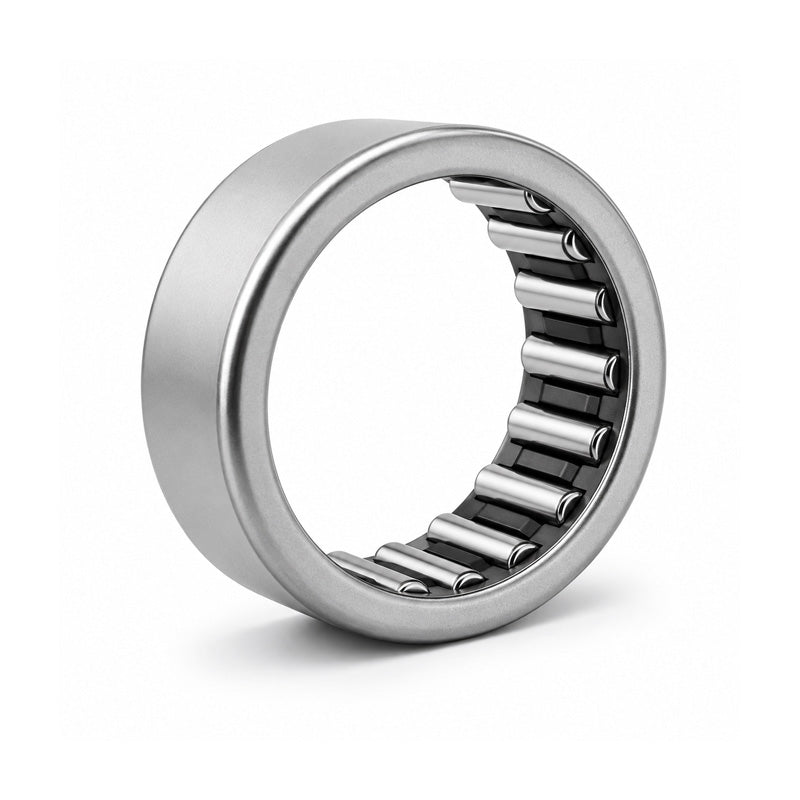

Major Brand HK0709 Drawn Cup Type Needle Roller Bearing with Two Open Ends 7x11x9mm
Major Brand HK0709 Drawn Cup Type Needle Roller Bearing with Two Open Ends 7x11x9mm
Regular price
Rs. 711.71
ex VAT
Regular price
Sale price
Rs. 711.71
ex VAT
Equivalent to: TLA79Z RHNA071109
In stock
Price Break
10+
Rs. 633.42
19+
Rs. 597.84
29+
Rs. 590.72
39+
Rs. 583.60
49+
Rs. 576.49
74+
Rs. 569.37
99+
Rs. 533.78
199+
Rs. 526.67
249+
Rs. 519.55
499+
Rs. 512.43
999+
Rs. 498.20
Couldn't load pickup availability
Description
Description
|
HK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Equivalent: TLA79Z RHNA071109
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 7mm
- Outside Diameter:
- 11mm
- Width:
- 9mm
Technical
Technical
| Fw | 7mm |
|---|---|
| D | 11mm |
| C | 9mm |
| Dynamic load | 3030 N |
| Static load | 3050 N |
| Fatigue load limit Pu | 325 N |
| Speed in grease | 18000 rpm |
| Speed in oil | 28000 rpm |
| r1r2 min | 0.4mm |
| Da max | 7.3mm |
| ra max | 0.4mm |
| Seal | G7x11x2S |
| Weight | 2.6 g |
