SKU: HGS50-JCS

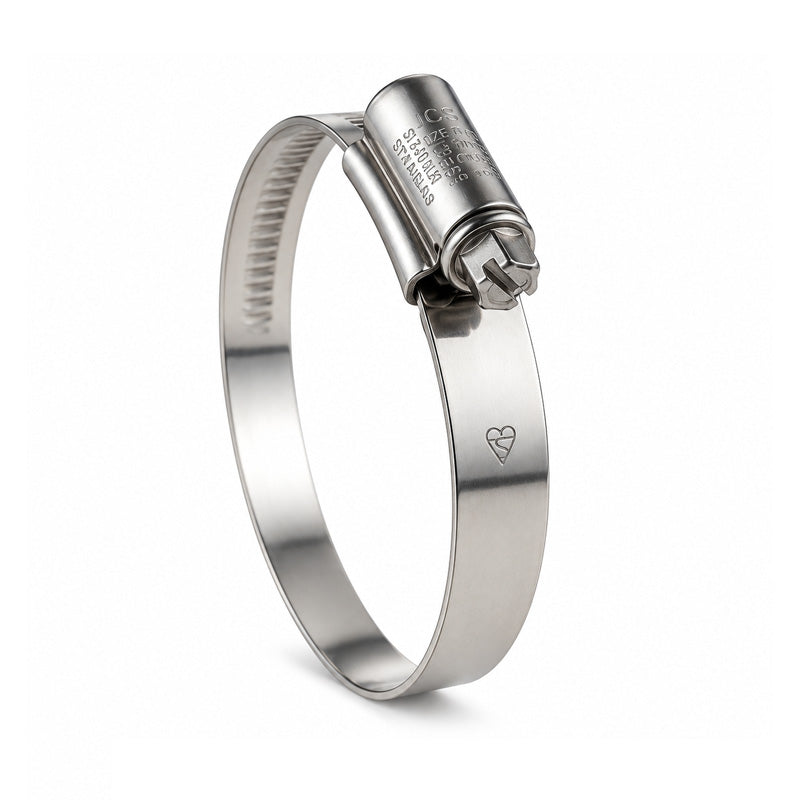

JCS HGS50 304 Stainless Steel Hi-Grip Hose Clip Adjustment Range 35-50mm Band Width 13mm
JCS HGS50 304 Stainless Steel Hi-Grip Hose Clip Adjustment Range 35-50mm Band Width 13mm
Regular price
Rs. 396.86
Regular price
Sale price
Rs. 396.86
Taxes included.
In stock
Price Break
5+
Rs. 277.80
10+
Rs. 238.12
20+
Rs. 218.27
50+
Rs. 198.43
100+
Rs. 158.74
500+
Rs. 138.90
1000+
Rs. 119.06
Description
Description
304 Stainless Steel Hi-Grip Worm Drive Hose Clips: Hi-Grip stainless steel worm drive hose clips have become the industry standard for demanding applications throughout the world due to their exceptional quality and performance. Made entirely from 18/8 marine quality stainless steel and with Lloyds Register Approval, they are ideal for saltwater and other corrosive environments. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse. They are manufactured to exceed BS5315, which has the highest requirements of any of the international standards and tests sealing ability, clamping force and torque.
- Brand / Quality:
- JCS - High Quality
- Width:
- 13mm
- Min Adjustment Range:
- 35mm
- Max Adjustment Range:
- 50mm
Technical
Technical
| BS No. | 50 |
|---|---|
| Adjustment Range (mm) | 35-50mm |
| Adjustment Range (inch) | 1-3/8 - 2 inch |
| A | 13mm |
| B | 20mm |
| C | 12mm |
| D | 16mm |
| E | 13mm |
| F | 0.9mm |
| Screw | 7mm A/F |
| Recommended Torque Nm | 6Nm |
| Recommended Torque lb-in | 54lb-in |
