SKU: HGS35-JCS

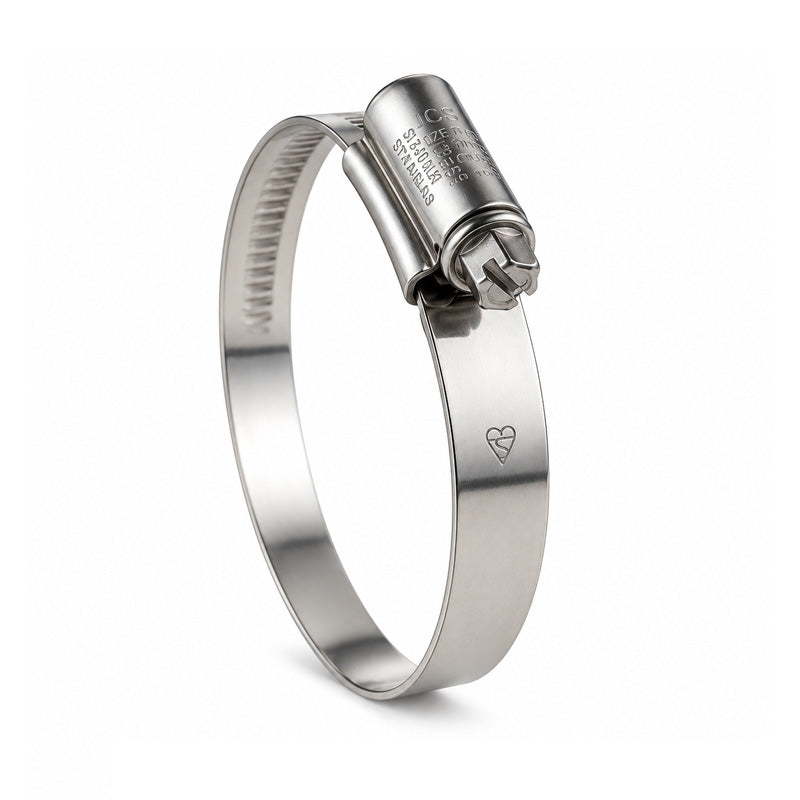

JCS HGS35 304 Stainless Steel Hi-Grip Hose Clip Adjustment Range 25-35mm Band Width 13mm
JCS HGS35 304 Stainless Steel Hi-Grip Hose Clip Adjustment Range 25-35mm Band Width 13mm
Regular price
Rs. 613.21
Regular price
Sale price
Rs. 613.21
Taxes included.
In stock
Price Break
5+
Rs. 607.08
10+
Rs. 582.55
20+
Rs. 570.29
50+
Rs. 551.89
100+
Rs. 539.62
500+
Rs. 508.96
1000+
Rs. 429.25
Description
Description
304 Stainless Steel Hi-Grip Worm Drive Hose Clips: Hi-Grip stainless steel worm drive hose clips have become the industry standard for demanding applications throughout the world due to their exceptional quality and performance. Made entirely from 18/8 marine quality stainless steel and with Lloyds Register Approval, they are ideal for saltwater and other corrosive environments. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse. They are manufactured to exceed BS5315, which has the highest requirements of any of the international standards and tests sealing ability, clamping force and torque.
- Brand / Quality:
- JCS - High Quality
- Width:
- 13mm
- Min Adjustment Range:
- 25mm
- Max Adjustment Range:
- 35mm
Technical
Technical
| BS No. | 35 |
|---|---|
| Adjustment Range (mm) | 25-35mm |
| Adjustment Range (inch) | 1 - 1-3/8 inch |
| A | 8mm |
| B | 15mm |
| C | 12mm |
| D | 15mm |
| E | 13mm |
| F | 0.9mm |
| Screw | 7mm A/F |
| Recommended Torque Nm | 5Nm |
| Recommended Torque lb-in | 45lb-in |
