SKU: HGS20-JCS

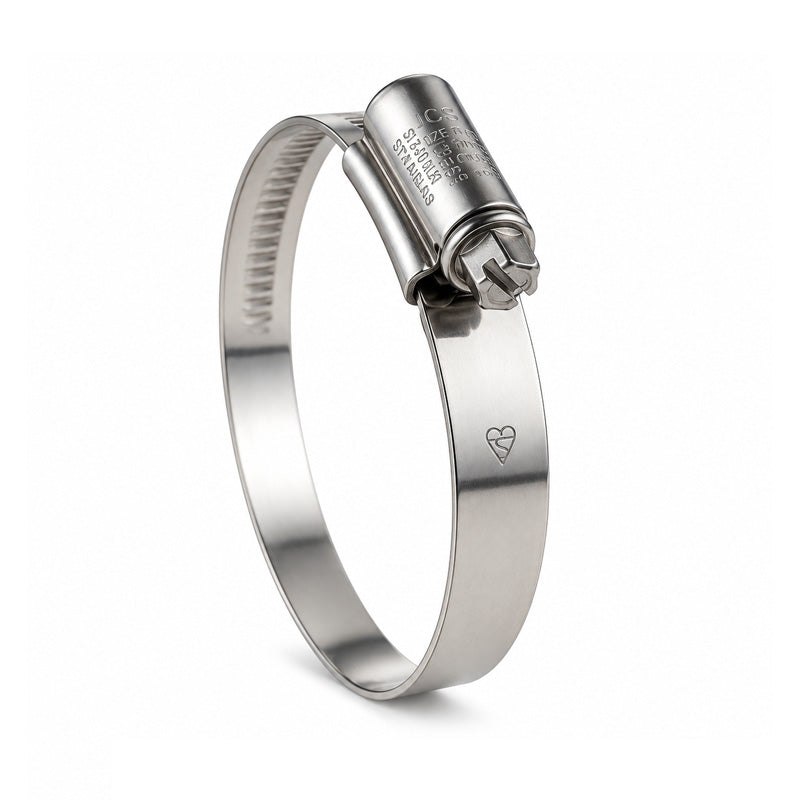

JCS HGS20 304 Stainless Steel Hi-Grip Hose Clip Adjustment Range 13-20mm Band Width 9mm
JCS HGS20 304 Stainless Steel Hi-Grip Hose Clip Adjustment Range 13-20mm Band Width 9mm
Regular price
Rs. 489.03
Regular price
Sale price
Rs. 489.03
Taxes included.
In stock
Price Break
5+
Rs. 342.32
10+
Rs. 293.42
20+
Rs. 268.97
50+
Rs. 244.52
100+
Rs. 195.61
500+
Rs. 171.16
1000+
Rs. 146.71
Description
Description
304 Stainless Steel Hi-Grip Worm Drive Hose Clips: Hi-Grip stainless steel worm drive hose clips have become the industry standard for demanding applications throughout the world due to their exceptional quality and performance. Made entirely from 18/8 marine quality stainless steel and with Lloyds Register Approval, they are ideal for saltwater and other corrosive environments. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse. They are manufactured to exceed BS5315, which has the highest requirements of any of the international standards and tests sealing ability, clamping force and torque.
- Brand / Quality:
- JCS - High Quality
- Width:
- 9mm
- Min Adjustment Range:
- 13mm
- Max Adjustment Range:
- 20mm
Technical
Technical
| BS No. | 20 |
|---|---|
| Adjustment Range (mm) | 13-20mm |
| Adjustment Range (inch) | 1/2 - 3/4 inch |
| A | 8mm |
| B | 14mm |
| C | 10mm |
| D | 12mm |
| E | 9mm |
| F | 0.7mm |
| Screw | 7mm A/F |
| Recommended Torque Nm | 3Nm |
| Recommended Torque lb-in | 26lb-in |
