SKU: HGJ40-JCS

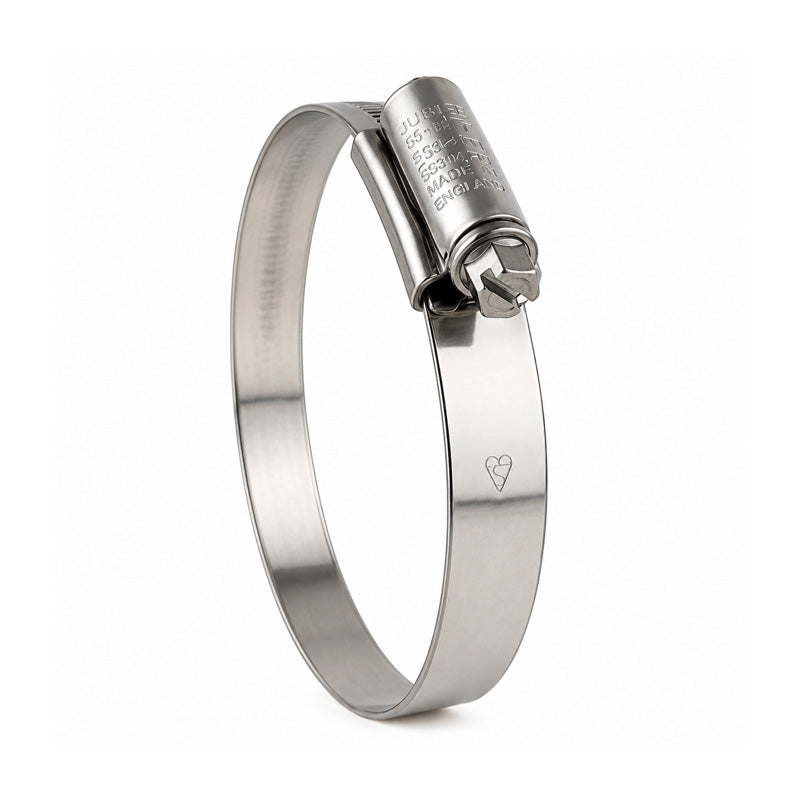

JCS HGJ40 316 Stainless Steel Hi-Grip Hose Clip Adjustment Range 30-40mm Band Width 13mm
JCS HGJ40 316 Stainless Steel Hi-Grip Hose Clip Adjustment Range 30-40mm Band Width 13mm
Regular price
Rs. 1,057.44
Regular price
Sale price
Rs. 1,057.44
Taxes included.
In stock
Price Break
10+
Rs. 941.12
19+
Rs. 888.25
29+
Rs. 877.68
39+
Rs. 867.10
49+
Rs. 856.53
74+
Rs. 845.95
99+
Rs. 793.08
199+
Rs. 782.51
249+
Rs. 771.93
499+
Rs. 761.36
999+
Rs. 740.21
Description
Description
316 Stainless Steel Hi-Grip Worm Drive Hose Clips: Principally aimed at the marine, food, petrochemical and pharmaceutical industries, the Hi-Grip 316 hose clip is made entirely from BS316 EN 1.4401/1.4578 austenitic stainless steel, providing the same superior performance as the rest of the Hi-Grip range but with maximum corrosion resistance. Lloyd’s Register Type Approved for marine, offshore and industrial use. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse. They are manufactured to exceed BS5315, which has the highest requirements of any of the international standards and tests sealing ability, clamping force and torque.
- Brand / Quality:
- JCS - High Quality
- Width:
- 13mm
- Min Adjustment Range:
- 30mm
- Max Adjustment Range:
- 40mm
Technical
Technical
| BS No. | 40 |
|---|---|
| Adjustment Range (mm) | 30-40mm |
| Adjustment Range (inch) | 1-1/8 - 1-5/8 inch |
| A | 8mm |
| B | 15mm |
| C | 12mm |
| D | 15mm |
| E | 13mm |
| F | 0.9mm |
| Screw | 7mm A/F |
| Recommended Torque Nm | 5Nm |
| Recommended Torque lb-in | 45lb-in |
