SKU: HGJ22-JCS

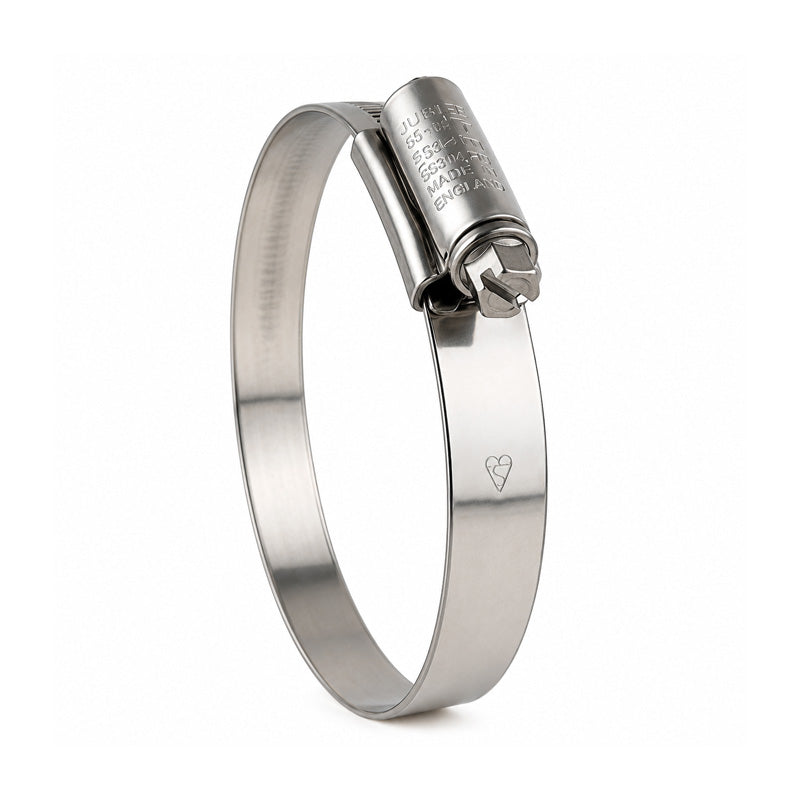

JCS HGJ22 316 Stainless Steel Hi-Grip Hose Clip Adjustment Range 14-22mm Band Width 13mm
JCS HGJ22 316 Stainless Steel Hi-Grip Hose Clip Adjustment Range 14-22mm Band Width 13mm
Regular price
Rs. 970.18
ex VAT
Regular price
Sale price
Rs. 970.18
ex VAT
In stock
Price Break
10+
Rs. 863.46
19+
Rs. 814.95
29+
Rs. 805.25
39+
Rs. 795.55
49+
Rs. 785.85
74+
Rs. 776.14
99+
Rs. 727.64
199+
Rs. 717.93
249+
Rs. 708.23
499+
Rs. 698.53
999+
Rs. 679.13
Couldn't load pickup availability
Description
Description
316 Stainless Steel Hi-Grip Worm Drive Hose Clips: Principally aimed at the marine, food, petrochemical and pharmaceutical industries, the Hi-Grip 316 hose clip is made entirely from BS316 EN 1.4401/1.4578 austenitic stainless steel, providing the same superior performance as the rest of the Hi-Grip range but with maximum corrosion resistance. Lloyd’s Register Type Approved for marine, offshore and industrial use. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse. They are manufactured to exceed BS5315, which has the highest requirements of any of the international standards and tests sealing ability, clamping force and torque.
- Brand / Quality:
- JCS - High Quality
- Width:
- 13mm
- Min Adjustment Range:
- 14mm
- Max Adjustment Range:
- 22mm
Technical
Technical
| BS No. | 22 |
|---|---|
| Adjustment Range (mm) | 14-22mm |
| Adjustment Range (inch) | 5/8 - 7/8 inch |
| A | 8mm |
| B | 15mm |
| C | 12mm |
| D | 15mm |
| E | 13mm |
| F | 0.9mm |
| Screw | 7mm A/F |
| Recommended Torque Nm | 5Nm |
| Recommended Torque lb-in | 45lb-in |
