SKU: HGJ20-JCS

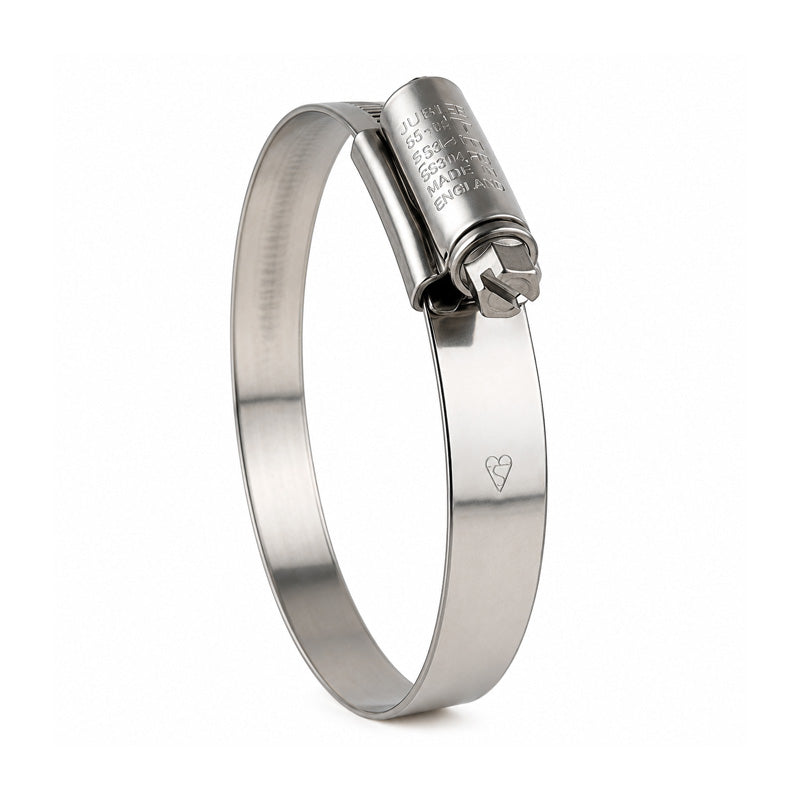

JCS HGJ20 316 Stainless Steel Hi-Grip Hose Clip Adjustment Range 13-20mm Band Width 9mm
JCS HGJ20 316 Stainless Steel Hi-Grip Hose Clip Adjustment Range 13-20mm Band Width 9mm
Regular price
Rs. 882.61
ex VAT
Regular price
Sale price
Rs. 882.61
ex VAT
In stock
Price Break
10+
Rs. 785.52
19+
Rs. 741.39
29+
Rs. 732.57
39+
Rs. 723.74
49+
Rs. 714.91
74+
Rs. 706.09
99+
Rs. 661.96
199+
Rs. 653.13
249+
Rs. 644.31
499+
Rs. 635.48
999+
Rs. 617.83
Couldn't load pickup availability
Description
Description
316 Stainless Steel Hi-Grip Worm Drive Hose Clips: Principally aimed at the marine, food, petrochemical and pharmaceutical industries, the Hi-Grip 316 hose clip is made entirely from BS316 EN 1.4401/1.4578 austenitic stainless steel, providing the same superior performance as the rest of the Hi-Grip range but with maximum corrosion resistance. Lloyd’s Register Type Approved for marine, offshore and industrial use. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse. They are manufactured to exceed BS5315, which has the highest requirements of any of the international standards and tests sealing ability, clamping force and torque.
- Brand / Quality:
- JCS - High Quality
- Width:
- 9mm
- Min Adjustment Range:
- 13mm
- Max Adjustment Range:
- 20mm
Technical
Technical
| BS No. | 20 |
|---|---|
| Adjustment Range (mm) | 13-20mm |
| Adjustment Range (inch) | 1/2 - 3/4 inch |
| A | 8mm |
| B | 14mm |
| C | 10mm |
| D | 12mm |
| E | 9mm |
| F | 0.7mm |
| Screw | 7mm A/F |
| Recommended Torque Nm | 3Nm |
| Recommended Torque lb-in | 26lb-in |
