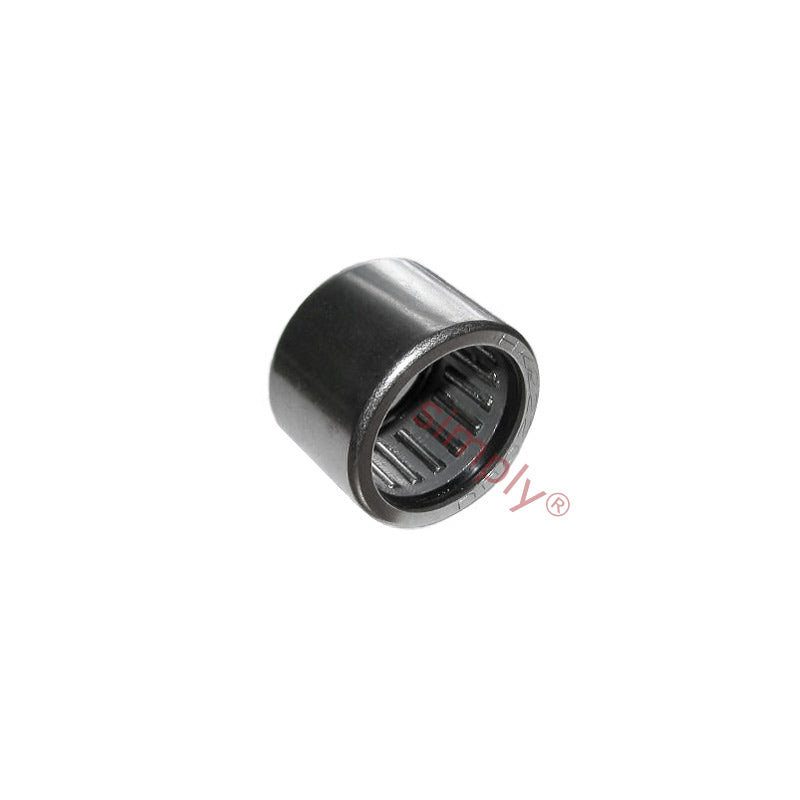

• HF0612 Budget Needle Roller Clutch Type One Way Bearing 6x10x12mm
1 1

SKU: HF.0612.EU

HF0612 Budget Needle Roller Clutch Type One Way Bearing 6x10x12mm

HF0612 Budget Needle Roller Clutch Type One Way Bearing 6x10x12mm
Rs. 368.69
Rs. 368.69
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 328.13
19+ Rs. 309.70
29+ Rs. 306.01
39+ Rs. 302.33
49+ Rs. 298.64
74+ Rs. 294.95
99+ Rs. 276.52
199+ Rs. 272.83
249+ Rs. 269.14
499+ Rs. 265.46
999+ Rs. 258.08
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Budget Clutch Needle Roller Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease.
They can be used together with needle roller bearings of the HK and BK series and are dimensionally the same and are available for shaft diameters from 6mm to 35mm
Benefits: High indexing accuracy, transmit torques in one direction, work at –10 deg C to +70 deg C
Please note: This bearing will turn in one direction only

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
6mm
Outside Diameter:
10mm
Width:
12mm
Technical
Fw 6mm
D 10mm
C 12mm (Tolerance: 0/-0.3)
r min 0.3mm
Permissable torque 1.76 Nm
Speed (rotating shaft) 23000 rpm
Speed (rotating outer ring) 13000 rpm
Weight 3 g
