SKU: HEATER1600-FAG

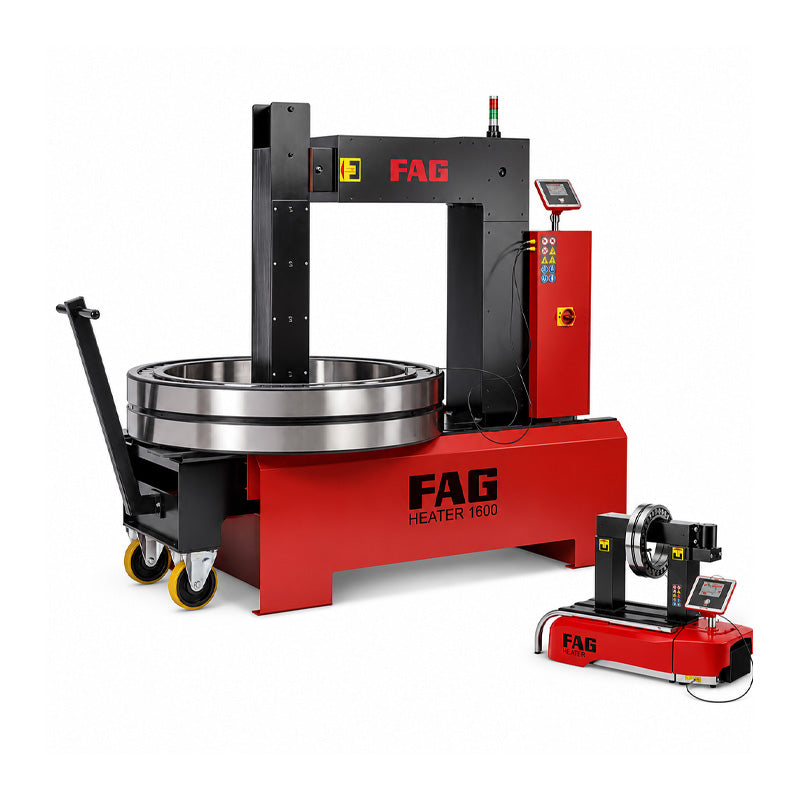

FAG HEATER1600 400V Heavy Duty Standalone Induction Bearing Heater for up to 1600 kg Bearings - Allow 2-3 Days
FAG HEATER1600 400V Heavy Duty Standalone Induction Bearing Heater for up to 1600 kg Bearings - Allow 2-3 Days
Regular price
Rs. 2,869,296.17
Regular price
Sale price
Rs. 2,869,296.17
Taxes included.
In stock
Price Break
2+
Rs. 2,869,009.24
5+
Rs. 2,854,949.69
10+
Rs. 2,840,603.21
15+
Rs. 2,811,910.25
20+
Rs. 2,783,217.28
30+
Rs. 2,754,524.32
50+
Rs. 2,725,831.36
Share this product
Description
Description
FAG Heater1600 Induction Heater: This heavy duty, standalone heating device is designed to heat bearings and other rotationally symmetrical parts made from steel so that they can be mounted more easily on a shaft to achieve a tight fit. Horizontal coil position allows uniform heating and prevents bearing damage from brinelling caused by too rapid heating of the workpiece. This device is suitable for work pieces of a minimum bore of 220mm with the accessory ledge with a mass of up to 1600kg. An infrared remote control is provided with this heating device, allowing the user to start the heating process from a safe distance.
Benefits: 5 year return to base warranty, Sliding table available for ease of use, pre-programmable temperature and timescales minimise temperature dfiferences between the inner and outer ring.
Benefits: 5 year return to base warranty, Sliding table available for ease of use, pre-programmable temperature and timescales minimise temperature dfiferences between the inner and outer ring.
- Brand / Quality:
- FAG - High Quality
- Size:
- Up to: 1600kg
Technical
Technical
| Max power | 40 kVA |
|---|---|
| Voltage/frequency | 400 V 50/60 Hz |
| Residual magnetism | < 2 A/cm |
| Weight | 650 kg |
| Length | 1500mm |
| Width | 800mm |
| Height | 1600mm |
| Maximum workpiece mass | 1600 kg |
| Workpiece diameter max | 2000mm |
| Workpiece width max | 680mm |
