SKU: HE311BE-EU

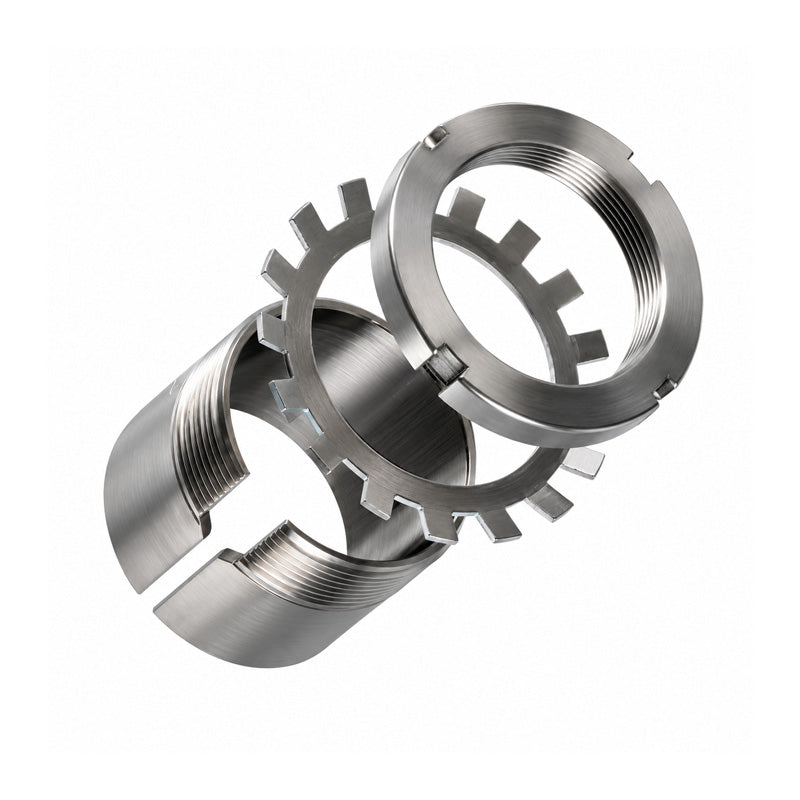

HE311BE Budget Imperial Adaptor Sleeve for 2 inch Shaft
HE311BE Budget Imperial Adaptor Sleeve for 2 inch Shaft
Regular price
Rs. 1,084.32
Regular price
Sale price
Rs. 1,084.32
Taxes included.
In stock
Price Break
10+
Rs. 965.04
19+
Rs. 910.83
29+
Rs. 899.99
39+
Rs. 889.14
49+
Rs. 878.30
74+
Rs. 867.46
99+
Rs. 813.24
199+
Rs. 802.40
249+
Rs. 791.55
499+
Rs. 780.71
999+
Rs. 759.02
Description
Description
|
Adaptor Sleeves for imperial shafts: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 75mm
- Width:
- 45mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 50.8mm (2) inch |
| d | 55mm |
| d3 | 75mm |
| B1 | 45mm |
| B2 | 14mm |
| G | W55x1/19mm |
| Weight | 0.3 kg |
| --- | Assembly Parts |
| Sleeve | HE311BE |
| Nut | KMFE11B |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2211K+taper>C2211K</a> |
