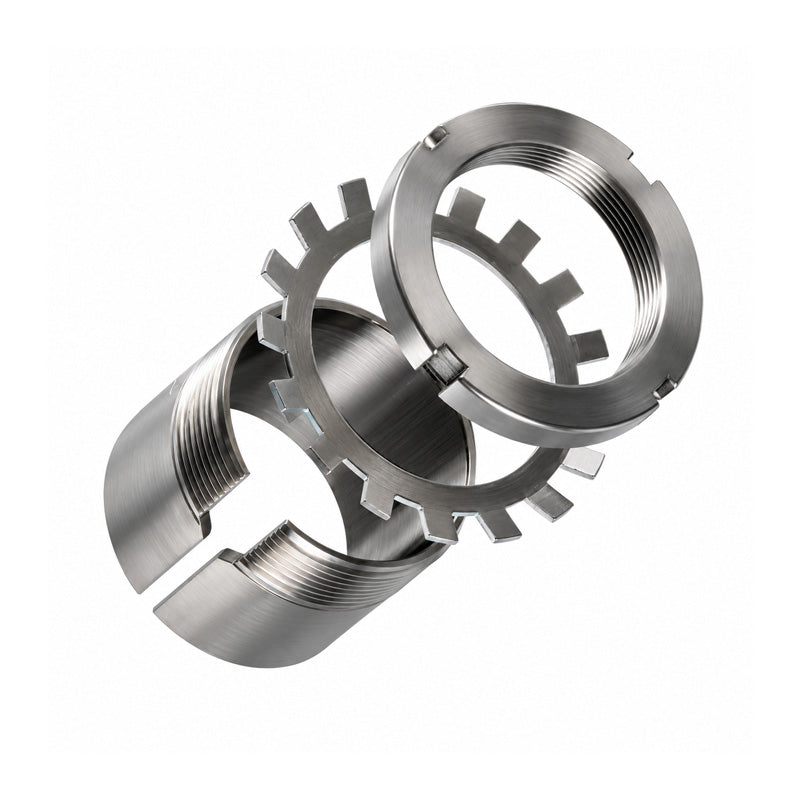

HE2311 Budget Imperial Adaptor Sleeve for 2 inch Shaft
HE2311 Budget Imperial Adaptor Sleeve for 2 inch Shaft
Regular price
Rs. 1,190.58
ex VAT
Regular price
Sale price
Rs. 1,190.58
ex VAT
In stock
Price Break
10+
Rs. 1,059.62
19+
Rs. 1,000.09
29+
Rs. 988.18
39+
Rs. 976.28
49+
Rs. 964.37
74+
Rs. 952.46
99+
Rs. 892.94
199+
Rs. 881.03
249+
Rs. 869.12
499+
Rs. 857.22
999+
Rs. 833.41
Couldn't load pickup availability
Description
Description
|
Adaptor Sleeves for imperial shafts: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 75mm
- Width:
- 59mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 50.8mm (2) inch |
| d | 55mm |
| d3 | 75mm |
| B1 | 59mm |
| B2 | 12.5mm |
| G | W55x1/19mm |
| Weight | 0.36 kg |
| --- | Assembly Parts |
| Sleeve | HE2311 |
| Nut | HM11 |
| Washer | MB11 |
