SKU: HE211B-SKF

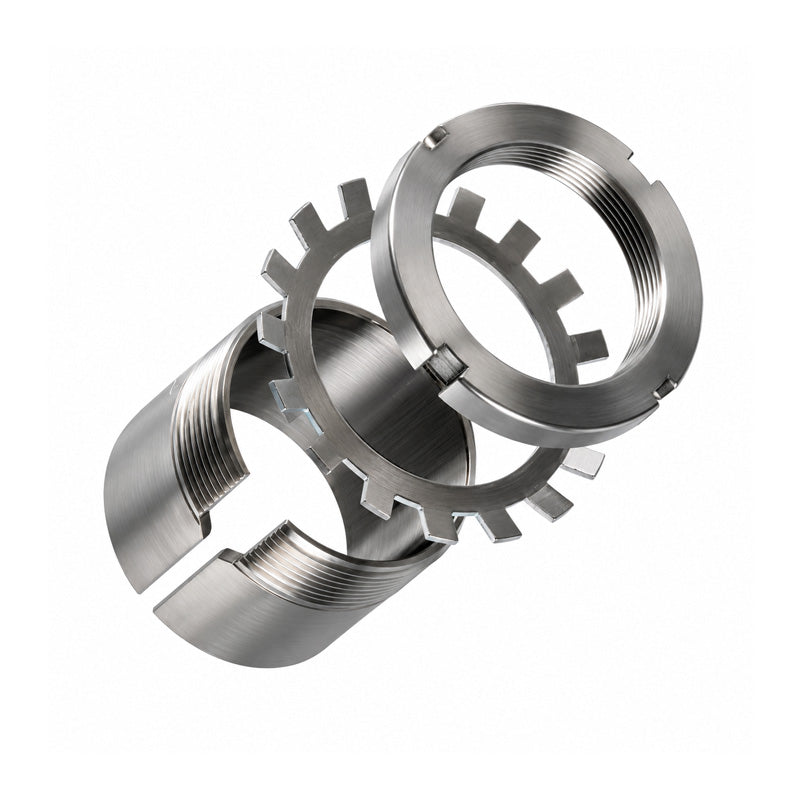

SKF HE211B Imperial Adaptor Sleeve for 2 inch Shaft
SKF HE211B Imperial Adaptor Sleeve for 2 inch Shaft
Regular price
Rs. 4,284.79
Regular price
Sale price
Rs. 4,284.79
Taxes included.
In stock
Price Break
10+
Rs. 3,813.46
19+
Rs. 3,599.22
29+
Rs. 3,556.38
39+
Rs. 3,513.53
49+
Rs. 3,470.68
74+
Rs. 3,427.83
99+
Rs. 3,213.59
199+
Rs. 3,170.74
249+
Rs. 3,127.90
499+
Rs. 3,085.05
999+
Rs. 2,999.35
Share this product
Description
Description
|
SKF Adaptor Sleeves for imperial shafts: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 75mm
- Width:
- 37mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 50.80mm (2)inch |
| d | 55mm |
| d3 | 75mm |
| B1 | 37mm |
| B2 | 12.5mm |
| G | W55x1/19mm |
| Weight | 0.26 kg |
| --- | Assembly Parts |
| Sleeve | HE211B |
| Nut | HM11 |
| Washer | MB11 |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1211K+taper>1211K</a> |
