SKU: HCP208
HCP208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert
HCP208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert
Regular price
Rs. 3,680.54
Regular price
Sale price
Rs. 3,680.54
Taxes included.
In stock
Price Break
10+
Rs. 3,275.68
19+
Rs. 3,091.65
29+
Rs. 3,054.85
39+
Rs. 3,018.04
49+
Rs. 2,981.24
74+
Rs. 2,944.43
99+
Rs. 2,760.41
199+
Rs. 2,723.60
249+
Rs. 2,686.79
499+
Rs. 2,649.99
999+
Rs. 2,576.38
Description
Description
HCP200 Series Normal Duty 2 Bolt Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing. The bearing insert has an eccentric collar and grub screws to allow locking to the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar / grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Style:
- HCP
- Bolt Hole Centres:
- 137mm

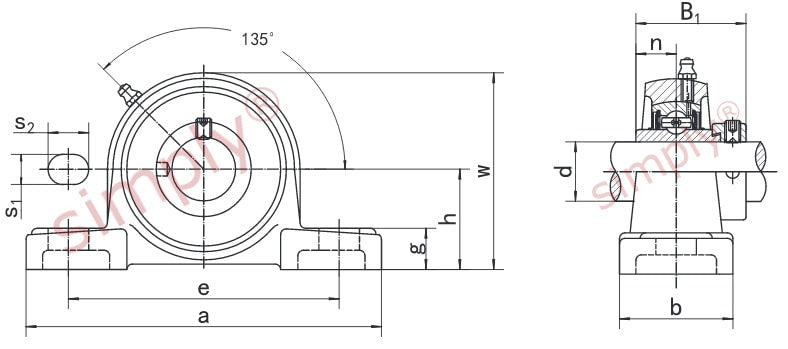

Technical
Technical
| d | 40mm |
|---|---|
| h | 49.2mm |
| e | 137mm |
| a | 184mm |
| b | 54mm |
| s1 | 17mm |
| s2 | 20mm |
| g | 18mm |
| w | 100mm |
| B1 | 56.3mm |
| n | 21.4mm |
| Bolt size | M14 |
| Bearing no | HC208 |
| Housing no | P208 |
| Weight | 1.99 kg |
