SKU: HCFL209

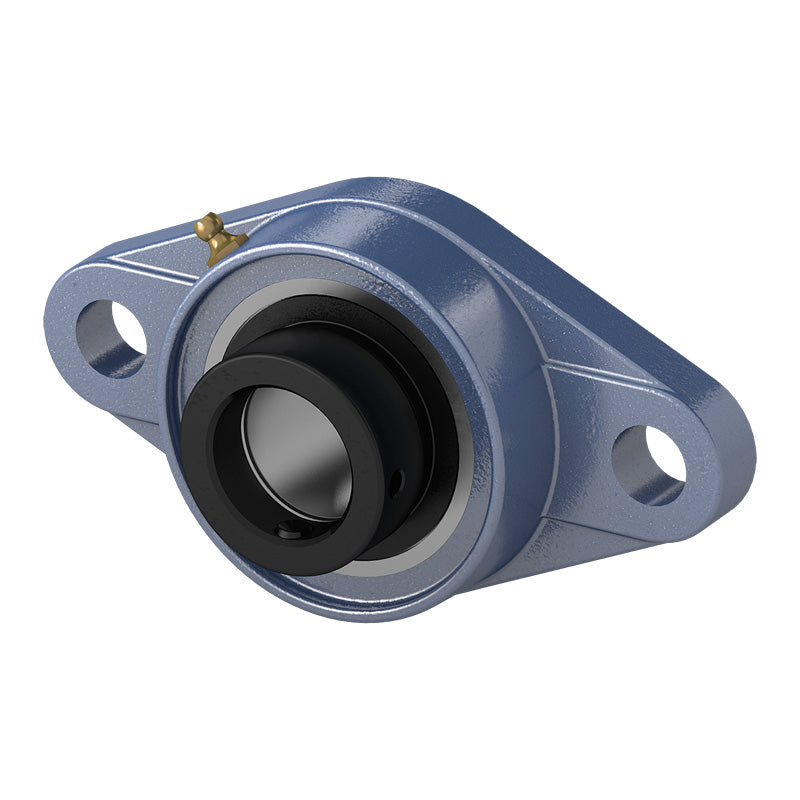

HCFL209 Metric Two Bolt Cast Iron Oval Housing with 45mm Eccentric Collar Insert
HCFL209 Metric Two Bolt Cast Iron Oval Housing with 45mm Eccentric Collar Insert
Regular price
Rs. 4,608.68
Regular price
Sale price
Rs. 4,608.68
Taxes included.
In stock
Price Break
10+
Rs. 4,101.73
19+
Rs. 3,871.29
29+
Rs. 3,825.20
39+
Rs. 3,779.12
49+
Rs. 3,733.03
74+
Rs. 3,686.94
99+
Rs. 3,456.51
199+
Rs. 3,410.42
249+
Rs. 3,364.34
499+
Rs. 3,318.25
999+
Rs. 3,226.08
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- HCFL
- Bolt Hole Centres:
- 148mm
Technical
Technical
| d | 45mm |
|---|---|
| a | 188mm |
| e | 148mm |
| i | 22mm |
| g | 15mm |
| l | 38mm |
| s | 19mm |
| b | 108mm |
| z | 56.9mm |
| B1 | 56.3mm |
| n | 21.4mm |
| Bolt size | M16 |
| Bearing no | HC209 |
| Housing no | FL209 |
| Weight | 1.88 kg |
