SKU: HCFC209-28

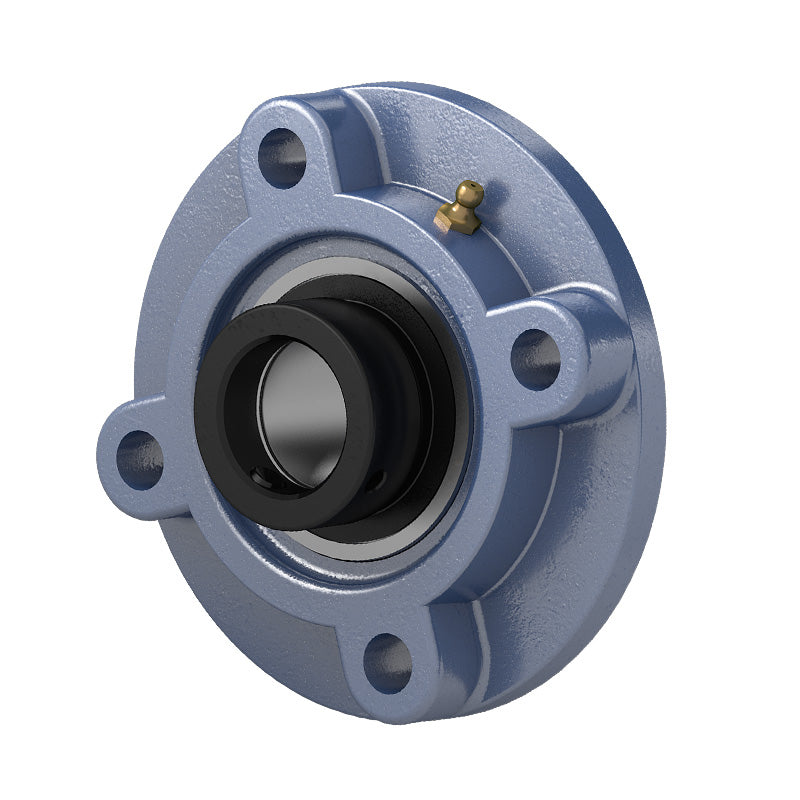

HCFC209-28 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-3/4 inch Eccentric Collar Insert
HCFC209-28 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-3/4 inch Eccentric Collar Insert
Regular price
Rs. 3,825.20
Regular price
Sale price
Rs. 3,825.20
Taxes included.
In stock
Price Break
10+
Rs. 3,404.43
19+
Rs. 3,213.17
29+
Rs. 3,174.92
39+
Rs. 3,136.66
49+
Rs. 3,098.41
74+
Rs. 3,060.16
99+
Rs. 2,868.90
199+
Rs. 2,830.65
249+
Rs. 2,792.40
499+
Rs. 2,754.14
999+
Rs. 2,677.64
Description
Description
HCFC200 Series Normal Duty 4 Bolt Round Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar / grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- HCFC
- Pitch Circle Diameter:
- 93.27mm = 3.672 (3-43/64) inch
Technical
Technical
| d | 1-3/4 inch |
|---|---|
| a | 6-19/64 inch |
| p | 5-13/64 inch |
| (e) | 3-43/64 inch |
| i | 25/64 inch |
| s | 5/8 inch |
| j | 15/32 inch |
| k | 35/64 inch |
| g | 1-1/32 inch |
| f | 4.1339 inch |
| z | 149/64 inch |
| B1 | 2.217 inch |
| n | 0.843 inch |
| Bolt size | 1/2 inch |
| Bearing no | HC209-28 |
| Housing no | FC209 |
| Weight | 2.68 kg |
