SKU: HCFC208-24

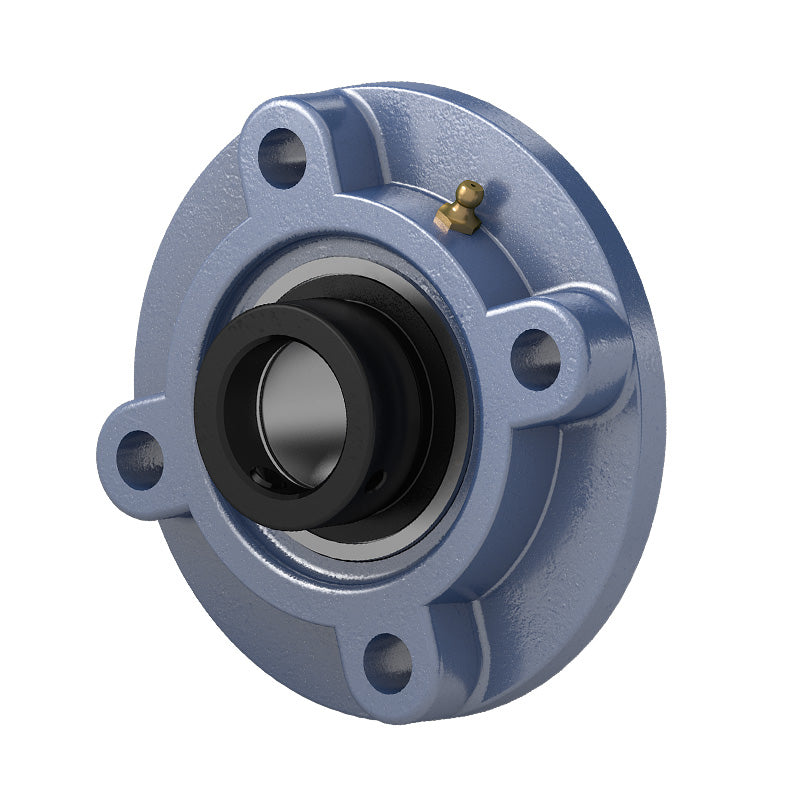

HCFC208-24 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-1/2 inch Eccentric Collar Insert
HCFC208-24 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-1/2 inch Eccentric Collar Insert
Regular price
Rs. 3,229.91
Regular price
Sale price
Rs. 3,229.91
Taxes included.
In stock
Price Break
10+
Rs. 2,874.62
19+
Rs. 2,713.12
29+
Rs. 2,680.83
39+
Rs. 2,648.53
49+
Rs. 2,616.23
74+
Rs. 2,583.93
99+
Rs. 2,422.43
199+
Rs. 2,390.13
249+
Rs. 2,357.83
499+
Rs. 2,325.54
999+
Rs. 2,260.94
Description
Description
HCFC200 Series Normal Duty 4 Bolt Round Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar / grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- HCFC
- Pitch Circle Diameter:
- 84.93mm = 3.344 (3-11/32) inch
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| a | 5-45/64 inch |
| p | 4-23/32 inch |
| (e) | 3-11/32 inch |
| i | 7/16 inch |
| s | 35/64 inch |
| j | 25/64 inch |
| k | 23/64 inch |
| g | 1-1/32 inch |
| f | 3.937 inch |
| z | 1-13/16 inch |
| B1 | 2.217 inch |
| n | 0.843 inch |
| Bolt size | 7/16 inch |
| Bearing no | HC208-24 |
| Housing no | FC208 |
| Weight | 2.03 kg |
