SKU: HCFC207-20

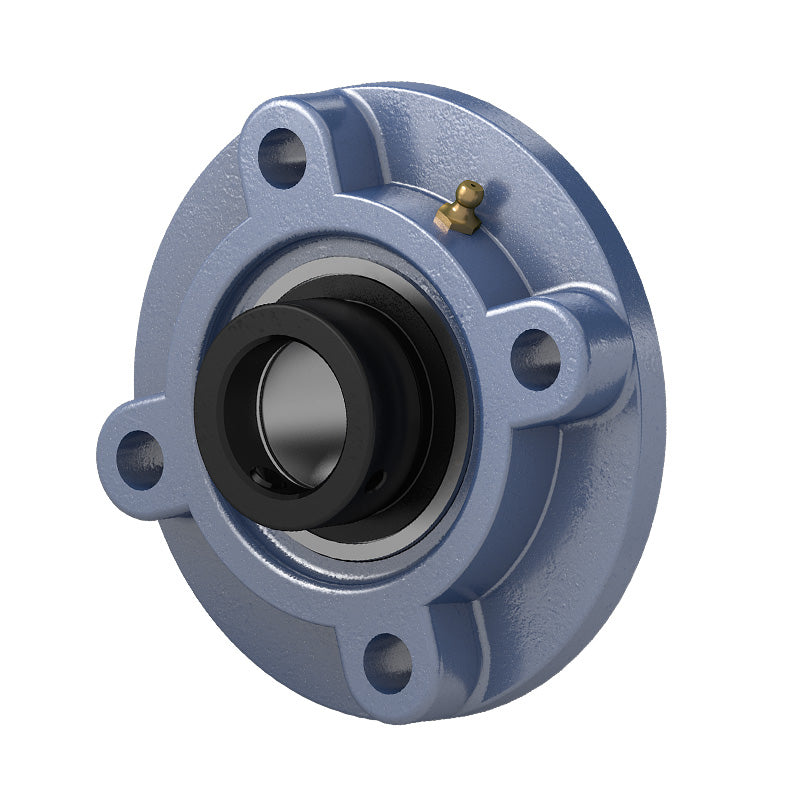

HCFC207-20 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-1/4 inch Eccentric Collar Insert
HCFC207-20 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-1/4 inch Eccentric Collar Insert
Regular price
Rs. 2,603.90
Regular price
Sale price
Rs. 2,603.90
Taxes included.
In stock
Price Break
10+
Rs. 2,317.47
19+
Rs. 2,187.28
29+
Rs. 2,161.24
39+
Rs. 2,135.20
49+
Rs. 2,109.16
74+
Rs. 2,083.12
99+
Rs. 1,952.93
199+
Rs. 1,926.89
249+
Rs. 1,900.85
499+
Rs. 1,874.81
999+
Rs. 1,822.73
Description
Description
HCFC200 Series Normal Duty 4 Bolt Round Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar / grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- HCFC
- Pitch Circle Diameter:
- 77.79mm = 3.063 (3-1/16) inch
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| a | 5-5/16 inch |
| p | 4-21/64 inch |
| (e) | 3-1/16 inch |
| i | 7/16 inch |
| s | 35/64 inch |
| j | 5/16 inch |
| k | 23/64 inch |
| g | 1-1/32 inch |
| f | 3.5433 inch |
| z | 145/64 inch |
| B1 | 2.012 inch |
| n | 0.74 inch |
| Bolt size | 7/16 inch |
| Bearing no | HC207-20 |
| Housing no | FC207 |
| Weight | 1.74 kg |
