SKU: HCFC206

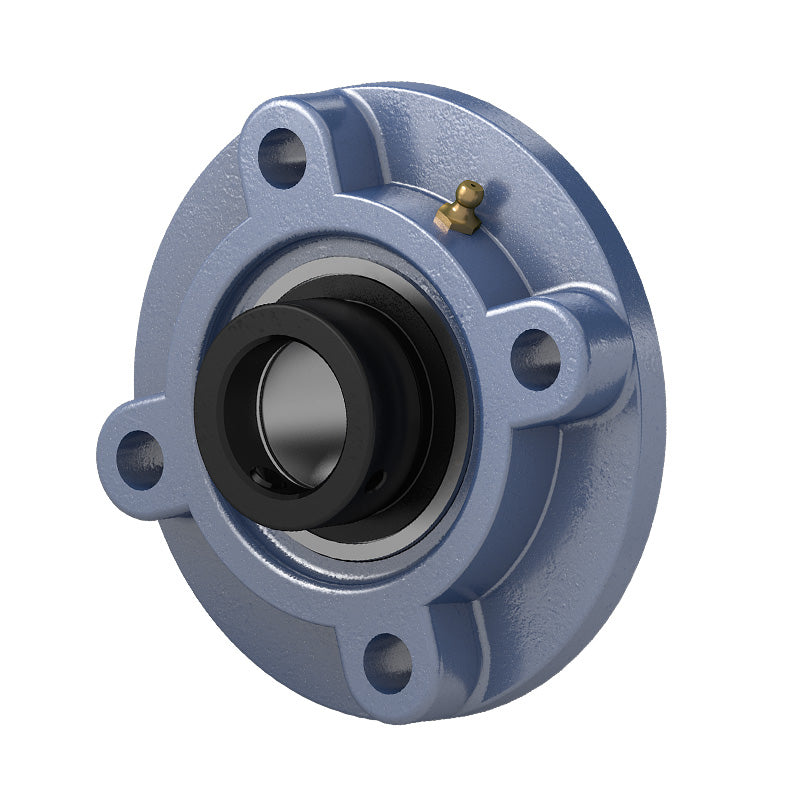

HCFC206 Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Eccentric Collar Insert
HCFC206 Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Eccentric Collar Insert
Regular price
Rs. 1,990.69
Regular price
Sale price
Rs. 1,990.69
Taxes included.
In stock
Price Break
10+
Rs. 1,771.71
19+
Rs. 1,672.18
29+
Rs. 1,652.27
39+
Rs. 1,632.37
49+
Rs. 1,612.46
74+
Rs. 1,592.55
99+
Rs. 1,493.02
199+
Rs. 1,473.11
249+
Rs. 1,453.20
499+
Rs. 1,433.30
999+
Rs. 1,393.48
Description
Description
HCFC200 Series Normal Duty 4 Bolt Round Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar / grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- HCFC
- Pitch Circle Diameter:
- 70.7mm
Technical
Technical
| d | 30mm |
|---|---|
| a | 125mm |
| p | 100mm |
| (e) | 70.7mm |
| i | 10mm |
| s | 12mm |
| j | 8mm |
| k | 8mm |
| g | 23mm |
| f | 80mm |
| z | 40.1mm |
| B1 | 48.4mm |
| n | 18.3mm |
| Bolt size | M10 |
| Bearing no | HC206 |
| Housing no | FC206 |
| Weight | 1.25 kg |
