SKU: HCFC204-12

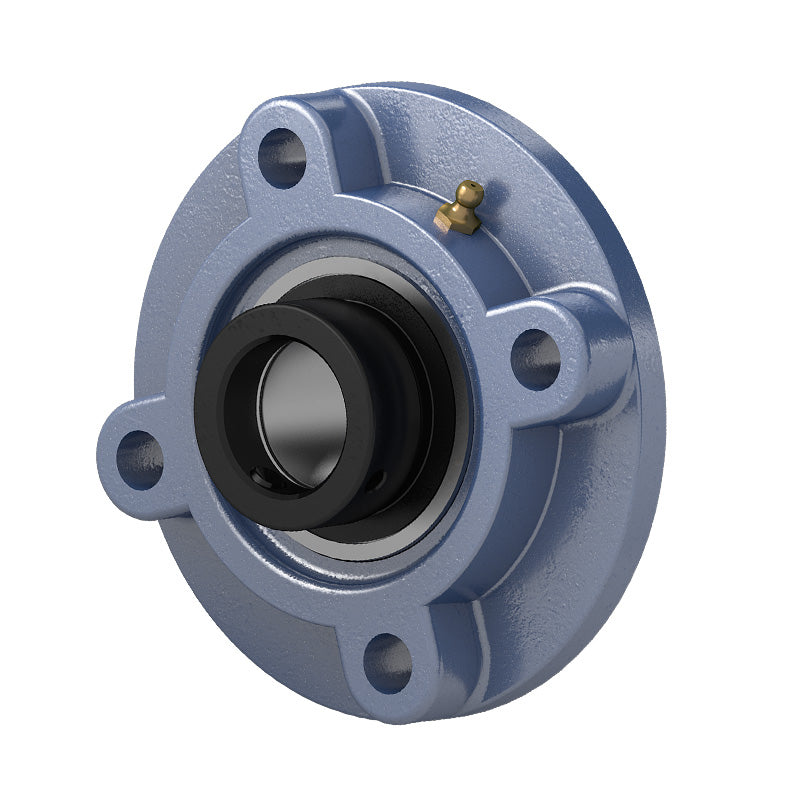

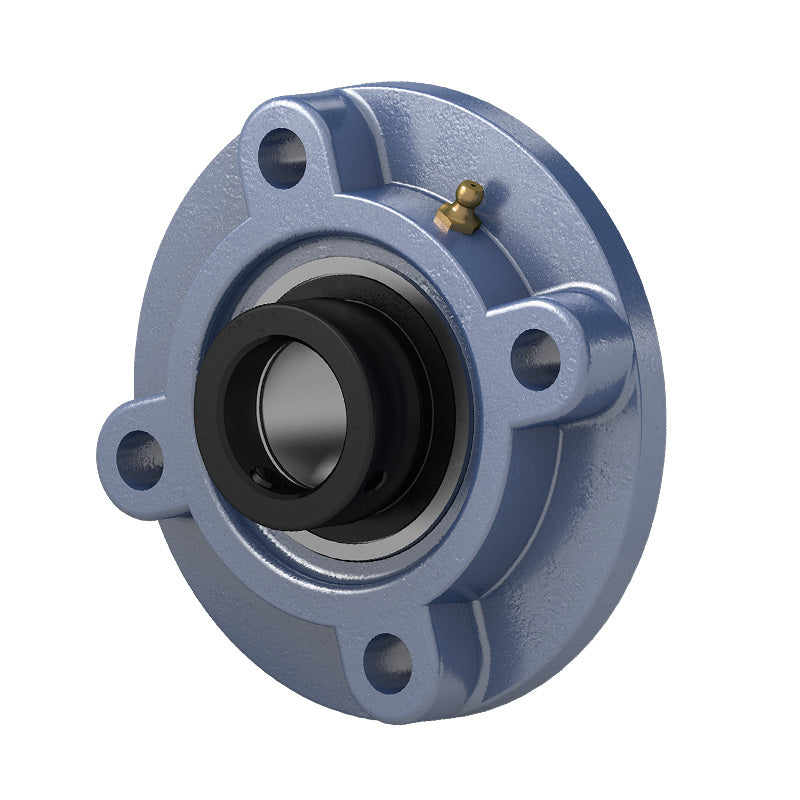

HCFC204-12 Imperial Four Bolt Cast Iron Round Flanged Housing with 3/4 inch Eccentric Collar Insert
HCFC204-12 Imperial Four Bolt Cast Iron Round Flanged Housing with 3/4 inch Eccentric Collar Insert
Regular price
Rs. 1,638.64
Regular price
Sale price
Rs. 1,638.64
Taxes included.
In stock
Price Break
10+
Rs. 1,458.39
19+
Rs. 1,376.46
29+
Rs. 1,360.07
39+
Rs. 1,343.68
49+
Rs. 1,327.30
74+
Rs. 1,310.91
99+
Rs. 1,228.98
199+
Rs. 1,212.59
249+
Rs. 1,196.21
499+
Rs. 1,179.82
999+
Rs. 1,147.05
Description
Description
HCFC200 Series Normal Duty 4 Bolt Round Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar / grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- HCFC
- Pitch Circle Diameter:
- 55.17mm = 2.172 (2-11/64) inch
Technical
Technical
| d | 3/4 inch |
|---|---|
| a | 3-15/16 inch |
| p | 3-5/64 inch |
| (e) | 2-11/64 inch |
| i | 25/64 inch |
| s | 15/32 inch |
| j | 13/64 inch |
| k | 9/32 inch |
| g | 13/16 inch |
| f | 2.4409 inch |
| z | 1-7/16 inch |
| B1 | 1.72 inch |
| n | 0.673 inch |
| Bolt size | 3/8 inch |
| Bearing no | HC204-12 |
| Housing no | FC204 |
| Weight | 0.72 kg |
