SKU: HCF.209

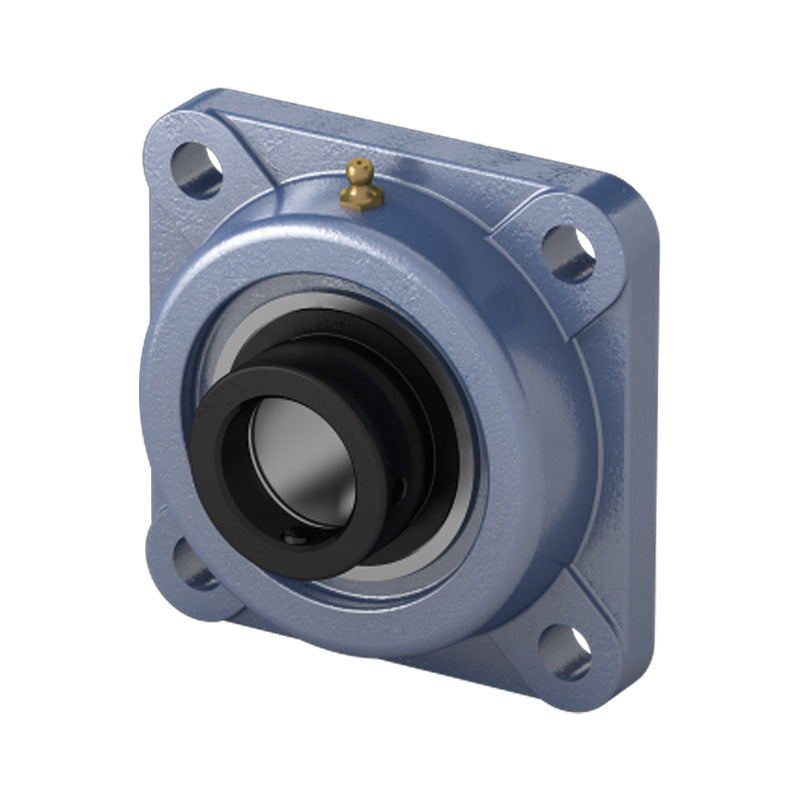

HCF209 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert
HCF209 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert
Regular price
Rs. 3,401.46
Regular price
Sale price
Rs. 3,401.46
Taxes included.
In stock
Price Break
10+
Rs. 3,027.30
19+
Rs. 2,857.23
29+
Rs. 2,823.21
39+
Rs. 2,789.20
49+
Rs. 2,755.18
74+
Rs. 2,721.17
99+
Rs. 2,551.10
199+
Rs. 2,517.08
249+
Rs. 2,483.07
499+
Rs. 2,449.05
999+
Rs. 2,381.02
Description
Description
HCF200 Series Normal Duty 4 Bolt Square Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the square cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be fully removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar / grub screw fixing
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar / grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- HCF
- Bolt Hole Centres:
- 105mm
Technical
Technical
| d | 45mm |
|---|---|
| a | 137mm |
| e | 105mm |
| i | 22mm |
| g | 18mm |
| l | 38mm |
| S | 16mm |
| z | 56.9mm |
| Bi | 56.3mm |
| n | 21.4mm |
| Bolt size | M14 |
| Bearing | HC209 |
| Housing | F209 |
| Mass | 2.13 kg |
