• HC207-22 Eccentric Collar Full Width Insert 1-3/8 inch Bore 72mm Outside Dia
1 1

SKU: HC207-22

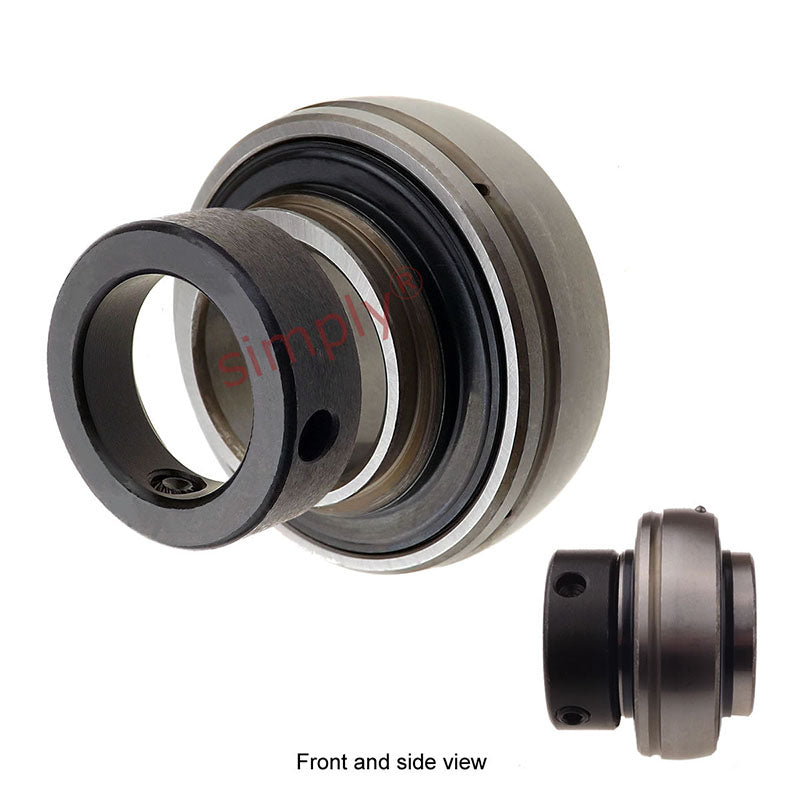

HC207-22 Eccentric Collar Full Width Insert 1-3/8 inch Bore 72mm Outside Dia

HC207-22 Eccentric Collar Full Width Insert 1-3/8 inch Bore 72mm Outside Dia
Rs. 1,202.10
Rs. 1,202.10
Sale Sold out
Taxes included.

Equivalent to: NA207-22

In stock

Price Break
10+ Rs. 1,069.87
19+ Rs. 1,009.76
29+ Rs. 997.74
39+ Rs. 985.72
49+ Rs. 973.70
74+ Rs. 961.68
99+ Rs. 901.58
199+ Rs. 889.55
249+ Rs. 877.53
499+ Rs. 865.51
999+ Rs. 841.47
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

HC or -- YEL or GE.. KRR Series Eccentric Collar Type Insert: Sealed full width bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing.
Benefits: Cost effective bearing insert, locking collar and grub screw fixing, secure shaft fixing, full width inner race.


Equivalent: NA207-22
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
34.93mm = 1.375 (1-3/8) inch
Style:
HC
Technical
d 1-3/8 inch
D 72mm
B1 51.1mm
B 37.6mm
C 20mm
s 18.8mm
ds 15/16 x 24 UNF
G 6.8mm
B5 17.5mm
d3 55.6mm
F 5.7mm
Dynamic load 2621 kgf
Static load 1560 kgf
Weight 0.6 kg
