• HC205 Eccentric Collar Full Width Insert 25mm Bore 52mm Outside Dia
1 1

SKU: HC205

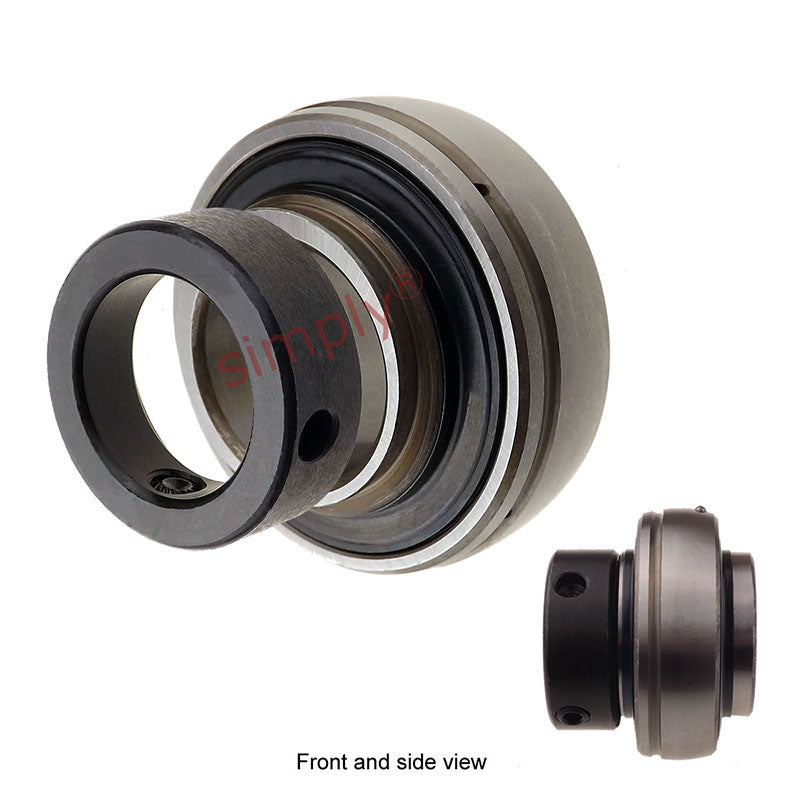

HC205 Eccentric Collar Full Width Insert 25mm Bore 52mm Outside Dia

HC205 Eccentric Collar Full Width Insert 25mm Bore 52mm Outside Dia
Rs. 1,291.71
Rs. 1,291.71
Sale Sold out
Taxes included.

Equivalent to: NA205

In stock

Price Break
10+ Rs. 1,149.62
19+ Rs. 1,085.04
29+ Rs. 1,072.12
39+ Rs. 1,059.20
49+ Rs. 1,046.29
74+ Rs. 1,033.37
99+ Rs. 968.78
199+ Rs. 955.87
249+ Rs. 942.95
499+ Rs. 930.03
999+ Rs. 904.20
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

HC or -- YEL or GE.. KRR Series Eccentric Collar Type Insert: Sealed full width bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing.
Benefits: Cost effective bearing insert, locking collar and grub screw fixing, secure shaft fixing, full width inner race.


Equivalent: NA205
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Style:
HC
Technical
d 25mm
D 52mm
B1 44.4mm
B 34.9mm
C 17mm
s 17.5mm
ds M6x1
G 4.8mm
B5 13.5mm
d3 38.1mm
F 3.9mm
Dynamic load 1428 kgf
Static load 800 kgf
Weight 0.27 kg
