SKU: HC202

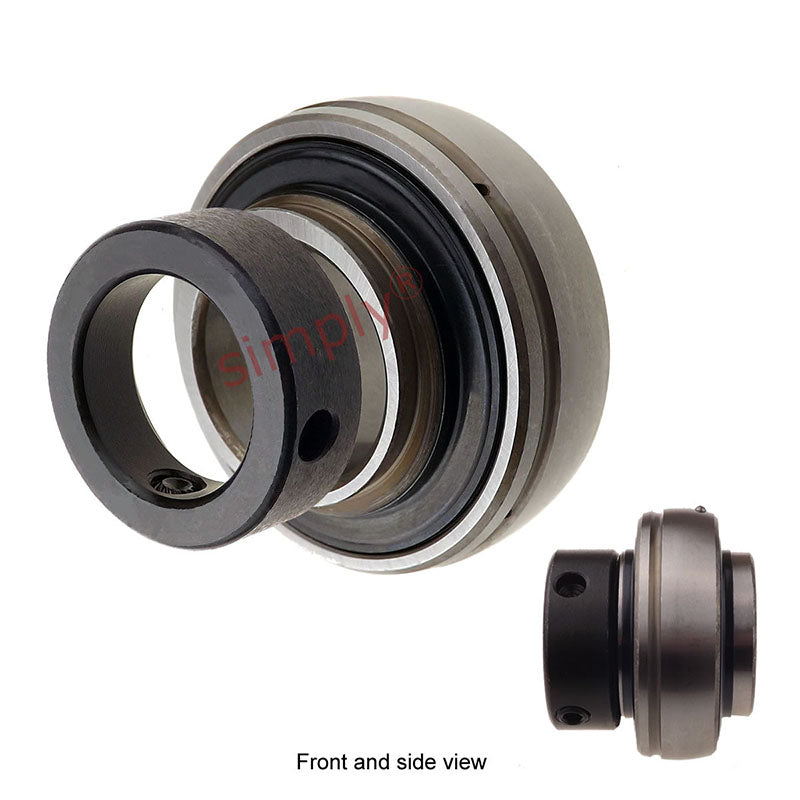

HC202 Eccentric Collar Full Width Insert 15mm Bore 47mm Outside Dia
HC202 Eccentric Collar Full Width Insert 15mm Bore 47mm Outside Dia
Regular price
Rs. 855.79
ex VAT
Regular price
Sale price
Rs. 855.79
ex VAT
Equivalent to: NA202
In stock
Price Break
10+
Rs. 761.65
19+
Rs. 718.86
29+
Rs. 710.31
39+
Rs. 701.75
49+
Rs. 693.19
74+
Rs. 684.63
99+
Rs. 641.84
199+
Rs. 633.28
249+
Rs. 624.73
499+
Rs. 616.17
999+
Rs. 599.05
Couldn't load pickup availability
Description
Description
|
HC or -- YEL or GE.. KRR Series Eccentric Collar Type Insert: Sealed full width bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
Equivalent: NA202
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Style:
- HC
- Type:
- Spherical Outer
Technical
Technical
| d | 15mm |
|---|---|
| D | 47mm |
| B1 | 43.7mm |
| B | 34.2mm |
| C | 17mm |
| s | 17.1mm |
| ds | M6x1 |
| G | 4.8mm |
| B5 | 13.5mm |
| d3 | 33.3mm |
| F | 3.7mm |
| Dynamic load | 1305 kgf |
| Static load | 678 kgf |
| Weight | 0.27 kg |
