SKU: HA2311-SKF
SKF HA2311 Imperial Adaptor Sleeve for 1-15/16 inch Shaft

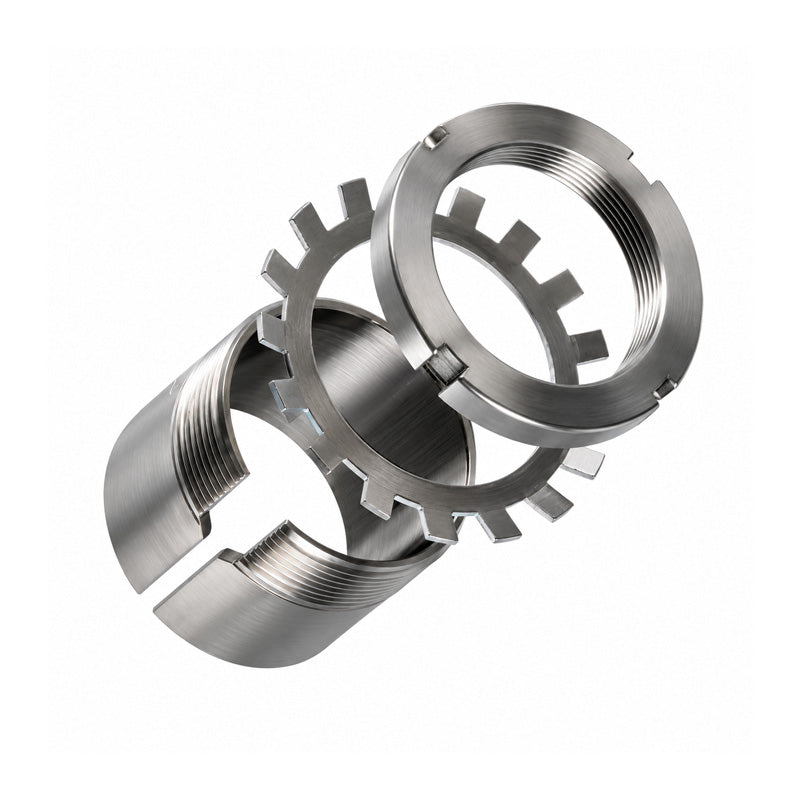

SKF HA2311 Imperial Adaptor Sleeve for 1-15/16 inch Shaft
Regular price
Rs. 4,214.53
ex VAT
Regular price
Sale price
Rs. 4,214.53
ex VAT
In stock
Price Break
10+
Rs. 3,750.93
19+
Rs. 3,540.21
29+
Rs. 3,498.06
39+
Rs. 3,455.91
49+
Rs. 3,413.77
74+
Rs. 3,371.62
99+
Rs. 3,160.90
199+
Rs. 3,118.75
249+
Rs. 3,076.61
499+
Rs. 3,034.46
999+
Rs. 2,950.17
Couldn't load pickup availability
Description
Description
|
SKF Adaptor Sleeves for imperial shafts: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Outside Diameter:
- 75mm
- Width:
- 59mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 49.21mm (1-15/16)inch |
| d | 55mm |
| d3 | 75mm |
| B1 | 59mm |
| B2 | 12.5mm |
| G | Thread 55x2mm |
| Weight | 0.42 kg |
| --- | Assembly Parts |
| Sleeve | HA2311 |
| Nut | KM11 |
| Washer | MB11 |
| Hydraulic nut | HMV11E |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2311K+taper>2311K</a> |
| --- | Matching Spherical Roller Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22311K+taper>22311K</a> |
