SKU: H3122-SKF

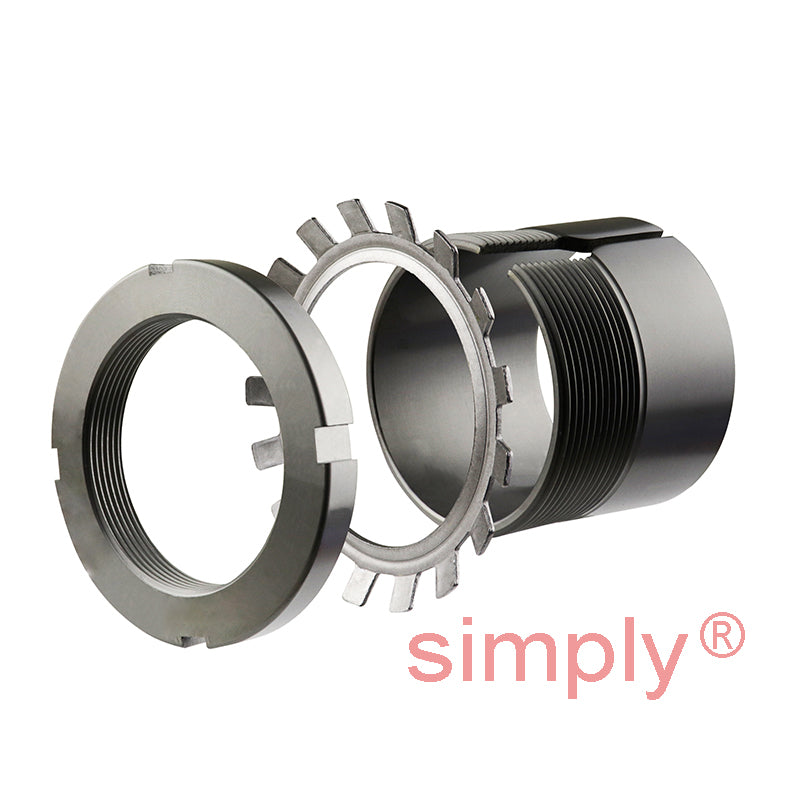

SKF H3122 Adaptor Sleeve with Lock Nut and Locking Device for 100mm Shaft
SKF H3122 Adaptor Sleeve with Lock Nut and Locking Device for 100mm Shaft
Regular price
Rs. 20,029.16
ex VAT
Regular price
Sale price
Rs. 20,029.16
ex VAT
In stock
Price Break
10+
Rs. 17,825.95
19+
Rs. 16,824.49
29+
Rs. 16,624.20
39+
Rs. 16,423.91
49+
Rs. 16,223.62
74+
Rs. 16,023.33
99+
Rs. 15,021.87
199+
Rs. 14,821.58
249+
Rs. 14,621.29
499+
Rs. 14,421.00
999+
Rs. 14,020.41
Couldn't load pickup availability
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 145mm
- Width:
- 81mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 100mm |
| d | 110mm |
| d3 | 145mm |
| B1 | 81mm |
| B2 | 21mm |
| G | Thread 110x2mm |
| Weight | 2.1 kg |
| --- | Assembly Parts |
| Sleeve | H3122 |
| Nut | KM22 |
| Washer | MB22 |
| Hydraulic nut | HMV22E |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23122K+taper>23122K</a> |
