SKU: GVK102-208-KTT-B-AH10-AS2/V-INA

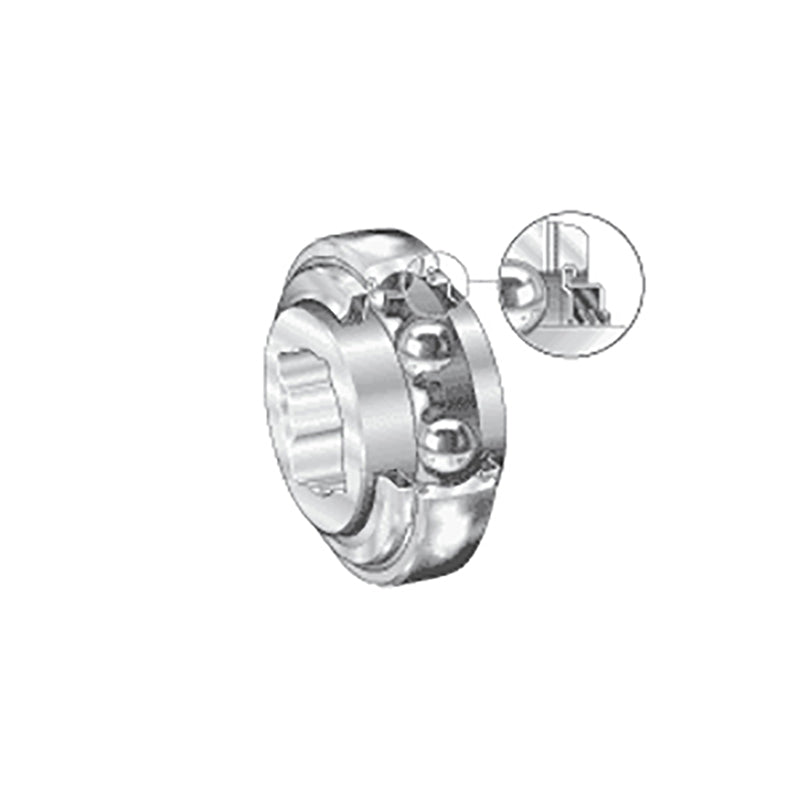

INA GVK102208KTTBAH10 Imperial Spherical Outer Square Bore Bearing Insert with T Seals 1-1/8 inch Bore
INA GVK102208KTTBAH10 Imperial Spherical Outer Square Bore Bearing Insert with T Seals 1-1/8 inch Bore
Regular price
Rs. 9,812.64
Regular price
Sale price
Rs. 9,812.64
Taxes included.
In stock
Price Break
10+
Rs. 8,733.25
19+
Rs. 8,242.62
29+
Rs. 8,144.49
39+
Rs. 8,046.36
49+
Rs. 7,948.24
74+
Rs. 7,850.11
99+
Rs. 7,359.48
199+
Rs. 7,261.35
249+
Rs. 7,163.23
499+
Rs. 7,065.10
999+
Rs. 6,868.85
Description
Description
|
INA GVK..-KTT-B Series Inserts: Bearing insert with spherical outer race, square bore and T seals. Bearings with a profiled bore are used where shafts must transmit very high torques and this is only possible using square or hexagonal shafts. Rotation is prevented by the geometrical locking effect. These bearings have a Corrotect® coating. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 80mm
- Width:
- 36.5mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 28.58mm |
|---|---|
| d | 1-1/8 inch |
| Tolerance | +0.9 / +0.6 |
| Dsp | 80mm |
| B | 36.5mm |
| C | 18mm |
| C2 | 25.3mm |
| Ca | 5.8mm |
| D1 | 68.3mm |
| d1 | 52.3mm |
| F | 41.3mm |
| r | 2.5mm |
| Limiting speed nG Fett | 500 rpm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 19800 N |
| Weight | 0.68 kg |
