SKU: GRAE50-NPP-B-NKE

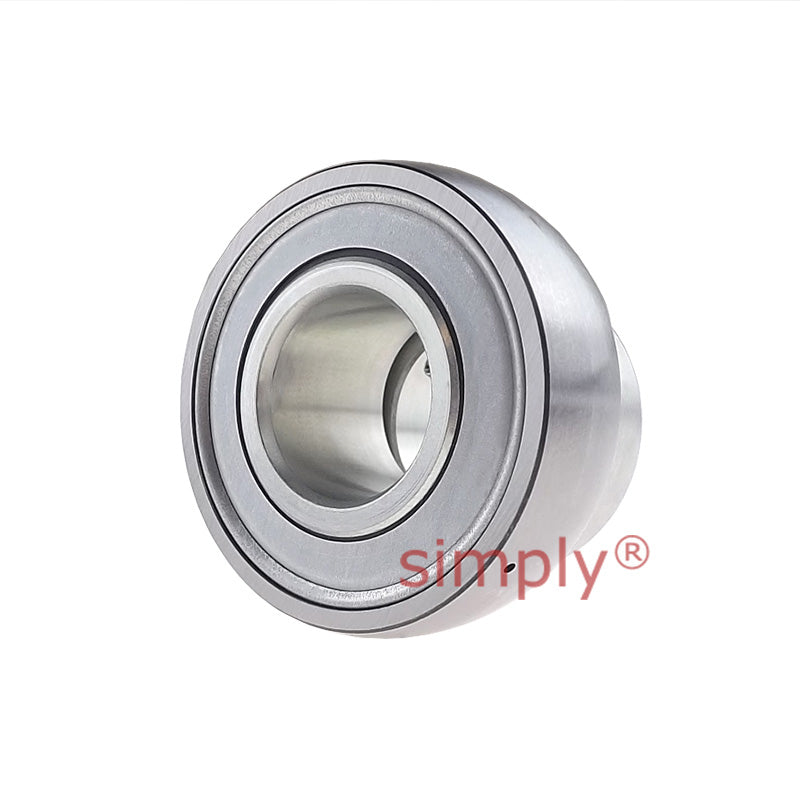

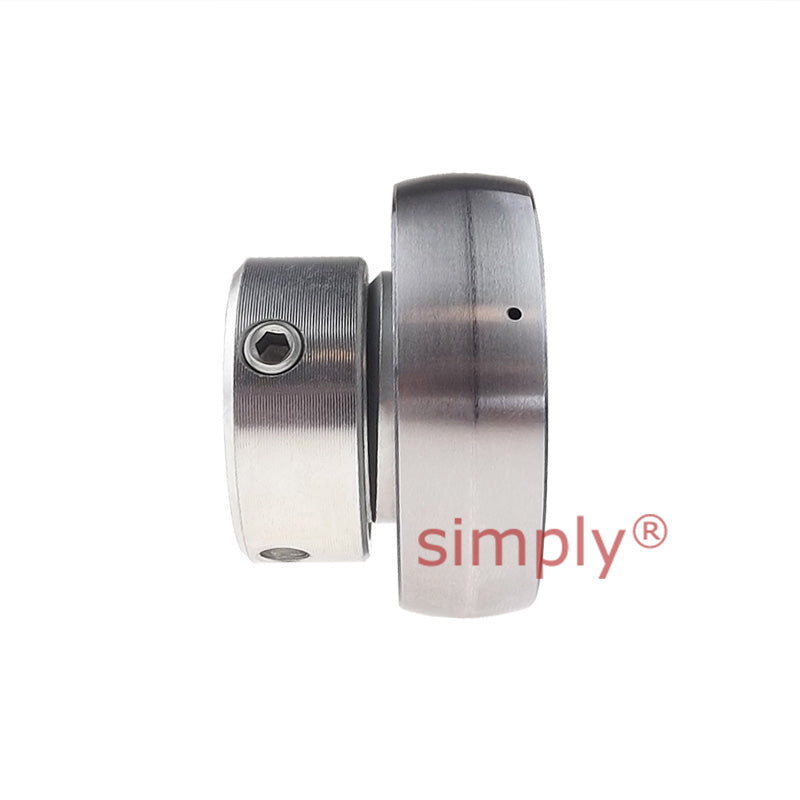

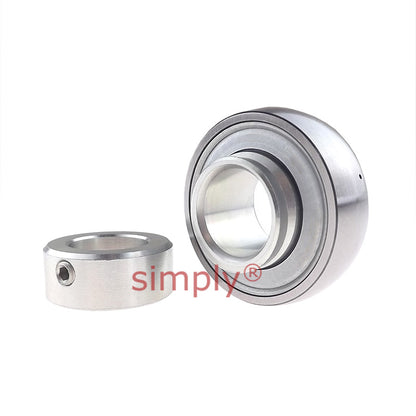

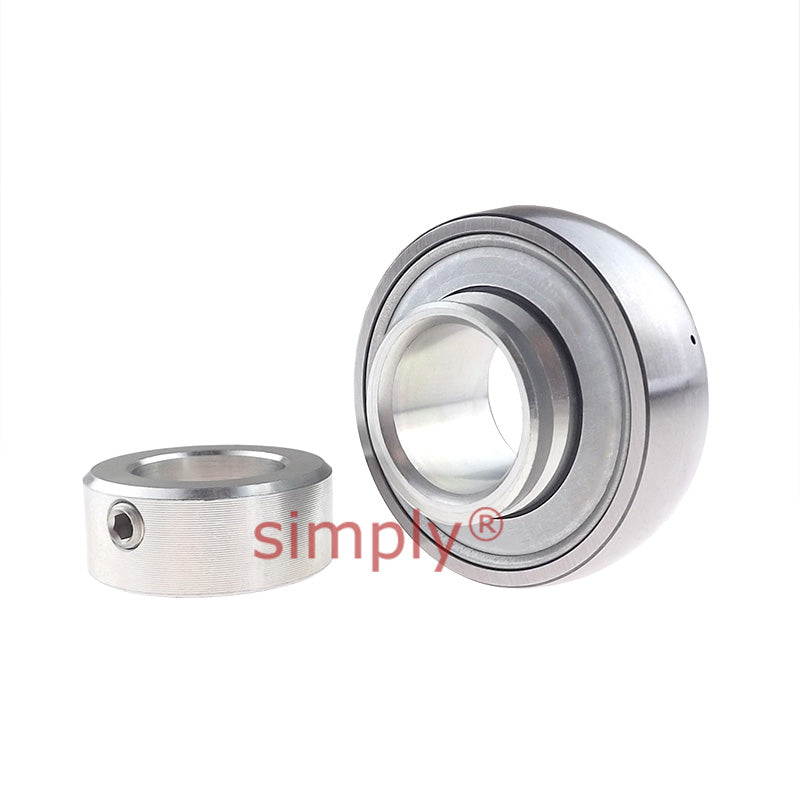

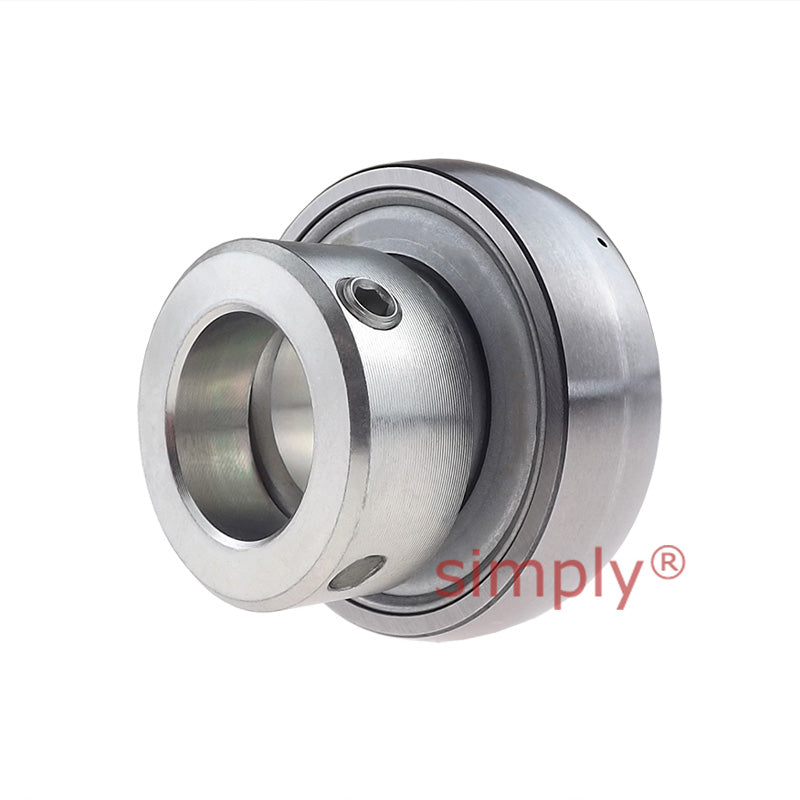

NKE GRAE50XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 50x90x43.8mm
NKE GRAE50XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 50x90x43.8mm
Regular price
Rs. 5,554.73
Regular price
Sale price
Rs. 5,554.73
Taxes included.
In stock
Price Break
10+
Rs. 4,943.71
19+
Rs. 4,665.97
29+
Rs. 4,610.43
39+
Rs. 4,554.88
49+
Rs. 4,499.33
74+
Rs. 4,443.78
99+
Rs. 4,166.05
199+
Rs. 4,110.50
249+
Rs. 4,054.95
499+
Rs. 3,999.41
999+
Rs. 3,888.31
Description
Description
NKE GRAE..-NPP-B Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect? coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C.
Benefits: Can be re-lubricated, compensation of misalignment.
Benefits: Can be re-lubricated, compensation of misalignment.
- Brand / Quality:
- NKE - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 43.8mm
Technical
Technical
| d | 50mm |
|---|---|
| Dsp | 90mm |
| B1 | 43.8mm |
| B | 30.2mm |
| C | 22mm |
| Ca | 6.9mm |
| d2 | 59.4mm |
| d3 max | 69mm |
| S | 11mm |
| W | 5mm |
| Dynamic load Cr | 35000 N |
| Static load C0r | 23200 N |
| Weight | 0.77 kg |
