SKU: GRAE35-NPP-B-FA125.5-INA

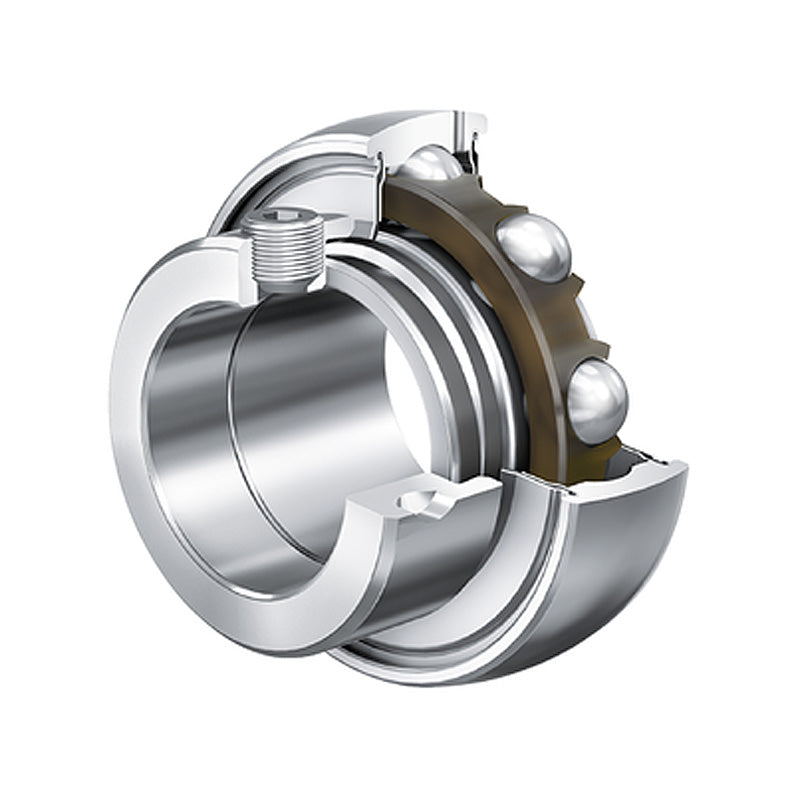

INA GRAE35-NPP-B-FA107/125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with P Seals and Eccentric Collar 35x72x39mm
INA GRAE35-NPP-B-FA107/125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with P Seals and Eccentric Collar 35x72x39mm
Regular price
Rs. 5,103.97
ex VAT
Regular price
Sale price
Rs. 5,103.97
ex VAT
In stock
Price Break
10+
Rs. 4,542.53
19+
Rs. 4,287.33
29+
Rs. 4,236.30
39+
Rs. 4,185.26
49+
Rs. 4,134.22
74+
Rs. 4,083.18
99+
Rs. 3,827.98
199+
Rs. 3,776.94
249+
Rs. 3,725.90
499+
Rs. 3,674.86
999+
Rs. 3,572.78
Couldn't load pickup availability
Description
Description
|
INA GRAE..-NPP-B-FA125.5 Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 39mm
- Type:
- Spherical Outer
Technical
Technical
| d | 35mm |
|---|---|
| Dsp | 72mm |
| B1 | 39mm |
| B | 25.4mm |
| C | 19mm |
| Ca | 5.6mm |
| d2 | 44.6mm |
| d3 max | 55mm |
| S | 9.5mm |
| W | 5mm |
| Dynamic load Cr | 25500 N |
| Static load C0r | 15300 N |
| Weight | 0.48 kg |
