SKU: GRAE30-NPP-B-FA125.5-INA

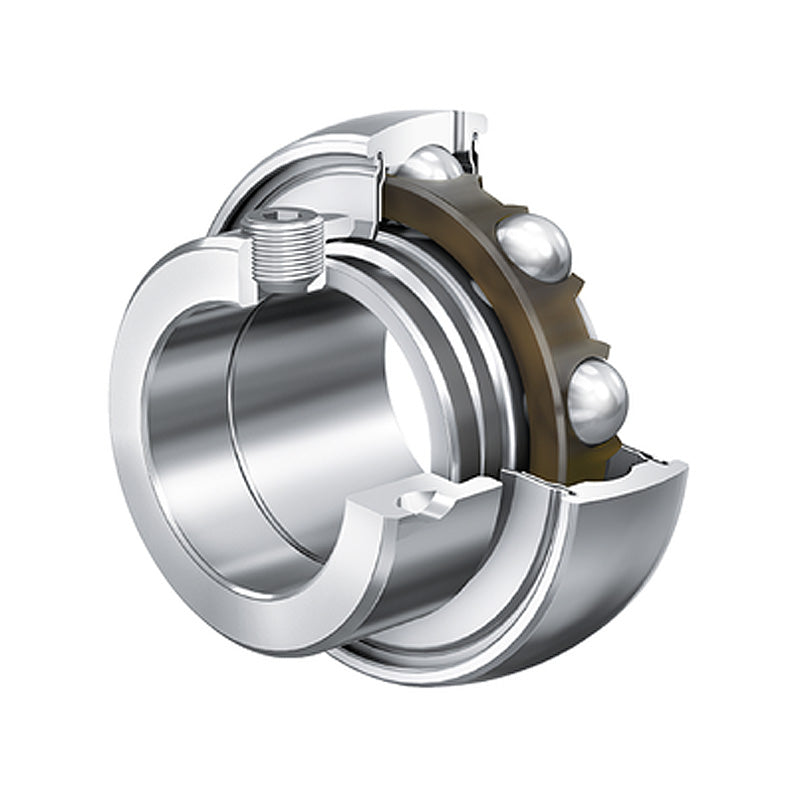

INA GRAE30-NPP-B-FA107/125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with P Seals and Eccentric Collar 30x62x35.8mm
INA GRAE30-NPP-B-FA107/125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with P Seals and Eccentric Collar 30x62x35.8mm
Regular price
Rs. 4,190.05
Regular price
Sale price
Rs. 4,190.05
Taxes included.
In stock
Price Break
10+
Rs. 3,729.14
19+
Rs. 3,519.64
29+
Rs. 3,477.74
39+
Rs. 3,435.84
49+
Rs. 3,393.94
74+
Rs. 3,352.04
99+
Rs. 3,142.54
199+
Rs. 3,100.64
249+
Rs. 3,058.74
499+
Rs. 3,016.84
999+
Rs. 2,933.04
Description
Description
|
INA GRAE..-NPP-B-FA125.5 Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 35.8mm
Technical
Technical
| d | 30mm |
|---|---|
| Dsp | 62mm |
| B1 | 35.8mm |
| B | 23.8mm |
| C | 18mm |
| Ca | 4.7mm |
| d2 | 37.4mm |
| d3 max | 44mm |
| S | 9mm |
| W | 4mm |
| Dynamic load Cr | 19500 N |
| Static load C0r | 11300 N |
| Weight | 0.32 kg |
