SKU: GLE70-KRR-B-INA

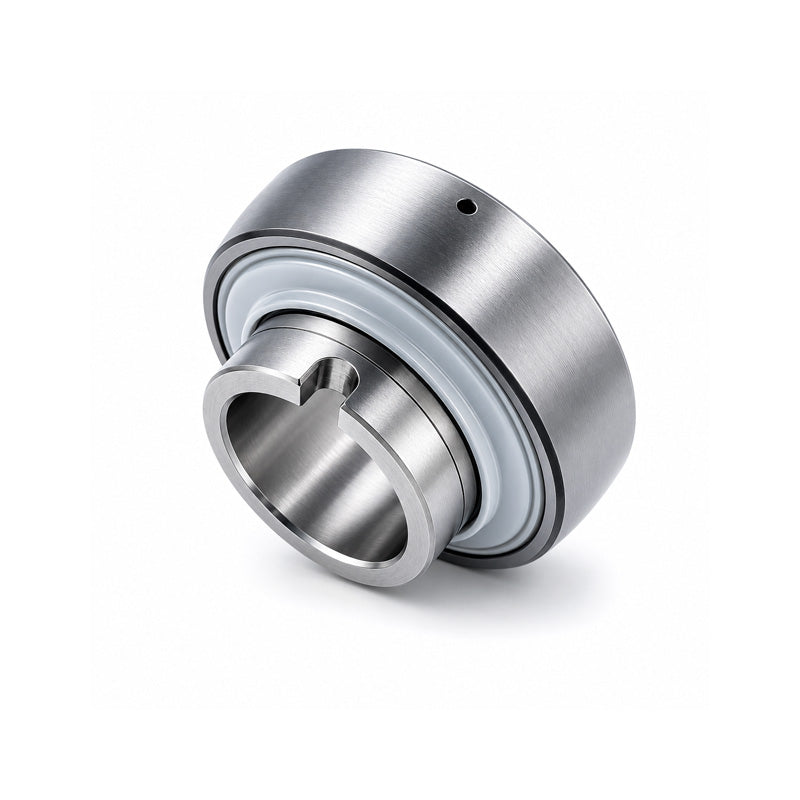

INA GLE70XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 70x125x68.2mm
INA GLE70XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 70x125x68.2mm
Regular price
Rs. 23,896.88
ex VAT
Regular price
Sale price
Rs. 23,896.88
ex VAT
In stock
Price Break
10+
Rs. 21,268.22
19+
Rs. 20,073.38
29+
Rs. 19,834.41
39+
Rs. 19,595.44
49+
Rs. 19,356.47
74+
Rs. 19,117.50
99+
Rs. 17,922.66
199+
Rs. 17,683.69
249+
Rs. 17,444.72
499+
Rs. 17,205.75
999+
Rs. 16,727.82
Couldn't load pickup availability
Description
Description
|
INA GLE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals with PTFE seal lips and a drive slot in the inner ring. These non-locating bearings are to be used at low speeds and loads to compensate for thermal elongation of the shaft. Due to the slot, they are easy to locate in a radial direction. Rotation is prevented by a drive pin on the shaft or a set collar with a pin. These bearings are suitable for drawn shafts up to grade h7. The outer ring has two lubrication holes as standard. Inner rings up to a bore diameter of 60mm have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 125mm
- Width:
- 68.2mm
- Type:
- Spherical Outer
Technical
Technical
| d | 70mm |
|---|---|
| Dsp | 125mm |
| B | 68.2mm |
| b | 9mm |
| C | 28mm |
| C2 | 32mm |
| Ca | 8.9mm |
| D1 | 109mm |
| d1 | 85.2mm |
| N | 12mm |
| S | 27mm |
| Dynamic load Cr | 62000 N |
| Static load C0r | 44000 N |
| Weight | 1.9 kg |
