SKU: GLE45-KRR-B-INA

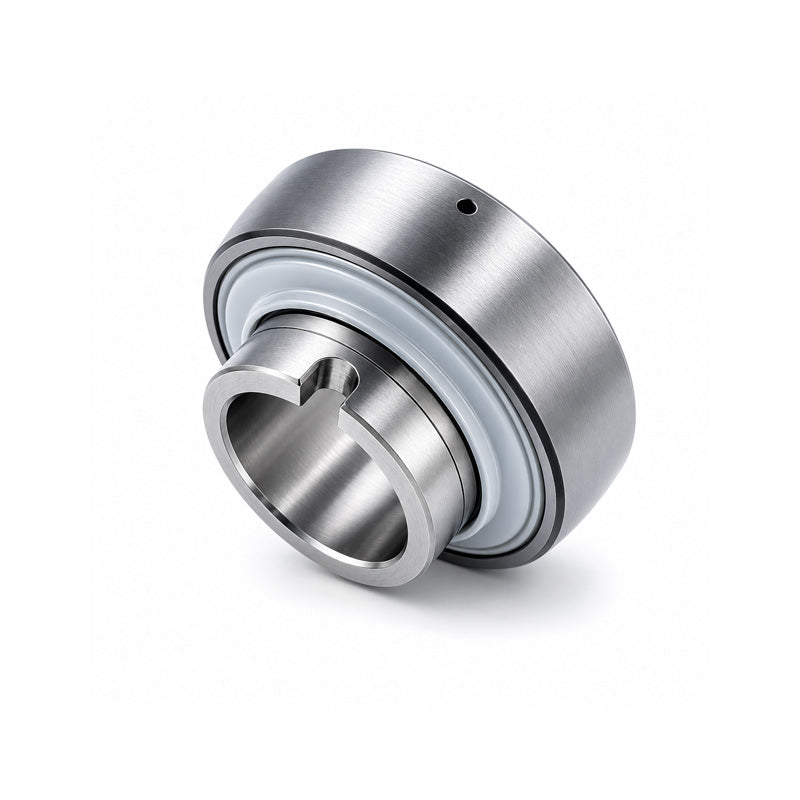

INA GLE45XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 45x85x42.9mm
INA GLE45XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 45x85x42.9mm
Regular price
Rs. 8,774.41
Regular price
Sale price
Rs. 8,774.41
Taxes included.
In stock
Price Break
10+
Rs. 7,809.22
19+
Rs. 7,370.50
29+
Rs. 7,282.76
39+
Rs. 7,195.02
49+
Rs. 7,107.27
74+
Rs. 7,019.53
99+
Rs. 6,580.81
199+
Rs. 6,493.06
249+
Rs. 6,405.32
499+
Rs. 6,317.58
999+
Rs. 6,142.09
Description
Description
|
INA GLE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals with PTFE seal lips and a drive slot in the inner ring. These non-locating bearings are to be used at low speeds and loads to compensate for thermal elongation of the shaft. Due to the slot, they are easy to locate in a radial direction. Rotation is prevented by a drive pin on the shaft or a set collar with a pin. These bearings are suitable for drawn shafts up to grade h7. The outer ring has two lubrication holes as standard. Inner rings up to a bore diameter of 60mm have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 42.9mm
Technical
Technical
| d | 45mm |
|---|---|
| Dsp | 85mm |
| B | 42.9mm |
| b | 7mm |
| C | 22mm |
| C2 | 26.4mm |
| Ca | 6.4mm |
| D1 | 72.3mm |
| d1 | 57.9mm |
| N | 9mm |
| S | 17.4mm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 20400 N |
| Weight | 0.66 kg |
