SKU: GLE30-20-500-DURB

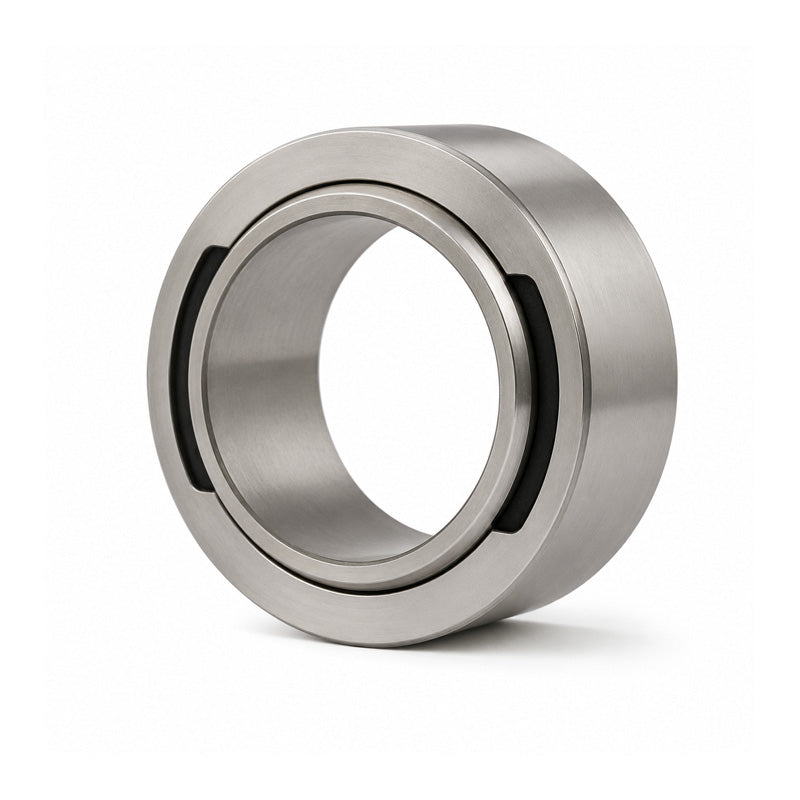

Durbal GLE30-20-500 Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 30x47x22mm - Allow 2-3 Days
Equivalent to: GE22UK GE22C
In stock
Price Break
Description
DURBAL Heavy-Duty Spherical-Plain Bearing - Sliding Combination Steel/PTFE: These spherical bearings consist of a hardened and chromium-plated steel joint ball and stainless steel outer ring injected with DURBAL-Glide (Polyamide-PTFE-fibreglass-Compound). DURBAL-Glide (race) made of polyamide-PTFE-glass fibre compound, maintenance-free, encapsulates penetrating foreign bodies. This fact and the greater overlay thickness compared to other sliding materials assure longer durability. A joint ball made of ball bearing steel, hardened, ground, polished, and hard chromium plated ensures reliable corrosion protection. For use with small swivelling movements and at low speeds. Temperature range: -30 deg C to +60 deg C.
Benefits: Suitable for use with impact loads, No clearance: radial clearance 0 – 10 µm, Free from non-ferrous metals.
Equivalent: GE22UK GE22C
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 30mm
- Material:
- PTFE Lined
Technical
| d | 30mm |
|---|---|
| D | 47mm |
| B | 22mm |
| C | 18mm |
| d1 | 34mm |
| dk | 40.7mm |
| rs | 0.6mm |
| r1s | 0.6mm |
| tilt angle α | 6 deg |
| weight | 0.145kg |
| basic load rating dyn C | 54 kN |
| basic load rating stat Co | 141.8 kN |
| radial clearance CN | 0-10 µm |
