SKU: GLE25-KRR-B-INA

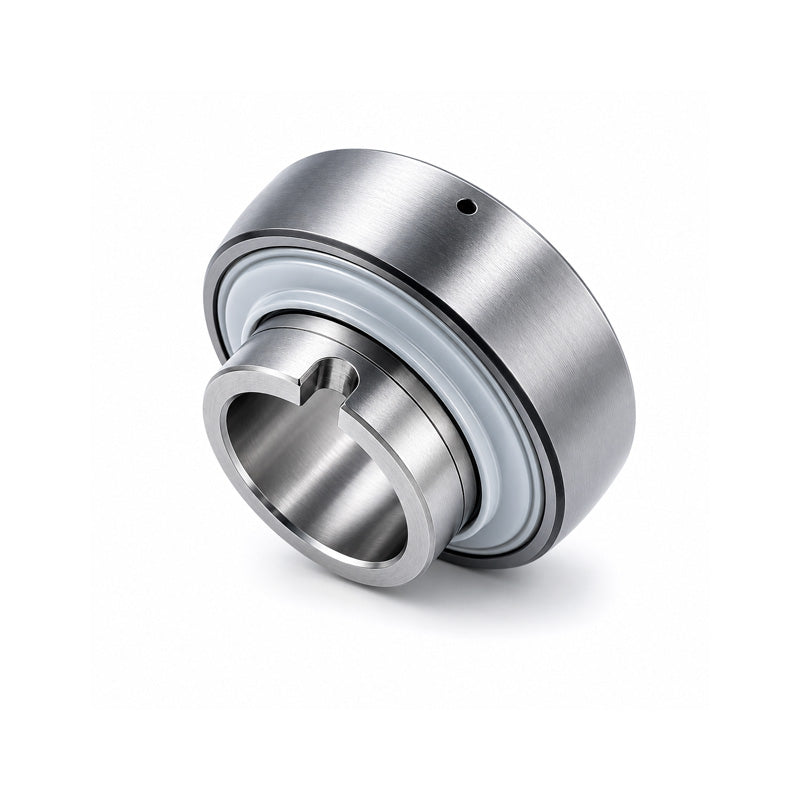

INA GLE25XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 25x52x34.9mm
INA GLE25XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 25x52x34.9mm
Regular price
Rs. 4,604.84
Regular price
Sale price
Rs. 4,604.84
Taxes included.
In stock
Price Break
10+
Rs. 4,098.31
19+
Rs. 3,868.07
29+
Rs. 3,822.02
39+
Rs. 3,775.97
49+
Rs. 3,729.92
74+
Rs. 3,683.87
99+
Rs. 3,453.63
199+
Rs. 3,407.58
249+
Rs. 3,361.53
499+
Rs. 3,315.48
999+
Rs. 3,223.39
Description
Description
|
INA GLE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals with PTFE seal lips and a drive slot in the inner ring. These non-locating bearings are to be used at low speeds and loads to compensate for thermal elongation of the shaft. Due to the slot, they are easy to locate in a radial direction. Rotation is prevented by a drive pin on the shaft or a set collar with a pin. These bearings are suitable for drawn shafts up to grade h7. The outer ring has two lubrication holes as standard. Inner rings up to a bore diameter of 60mm have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 34.9mm
Technical
Technical
| d | 25mm |
|---|---|
| Dsp | 52mm |
| B | 34.9mm |
| b | 7mm |
| C | 15mm |
| C2 | 16.7mm |
| Ca | 3.9mm |
| D1 | 42.5mm |
| d1 | 33.8mm |
| N | 8mm |
| S | 14.7mm |
| Dynamic load Cr | 14000 N |
| Static load C0r | 7800 N |
| Weight | 0.19 kg |
