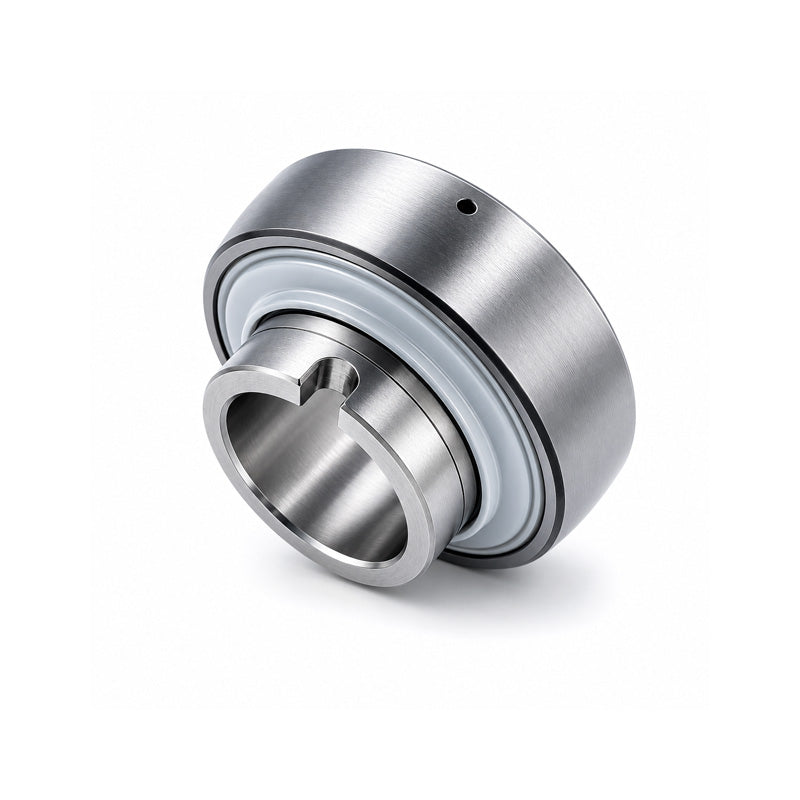

INA GLE20XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 20x47x34.1mm
INA GLE20XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 20x47x34.1mm
Regular price
Rs. 4,558.75
Regular price
Sale price
Rs. 4,558.75
Taxes included.
In stock
Price Break
10+
Rs. 4,057.29
19+
Rs. 3,829.35
29+
Rs. 3,783.76
39+
Rs. 3,738.18
49+
Rs. 3,692.59
74+
Rs. 3,647.00
99+
Rs. 3,419.06
199+
Rs. 3,373.48
249+
Rs. 3,327.89
499+
Rs. 3,282.30
999+
Rs. 3,191.13
Description
Description
|
INA GLE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals with PTFE seal lips and a drive slot in the inner ring. These non-locating bearings are to be used at low speeds and loads to compensate for thermal elongation of the shaft. Due to the slot, they are easy to locate in a radial direction. Rotation is prevented by a drive pin on the shaft or a set collar with a pin. These bearings are suitable for drawn shafts up to grade h7. The outer ring has two lubrication holes as standard. Inner rings up to a bore diameter of 60mm have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 34.1mm
Technical
Technical
| d | 20mm |
|---|---|
| Dsp | 47mm |
| B | 34.1mm |
| b | 7mm |
| C | 14mm |
| C2 | 16.6mm |
| Ca | 4mm |
| D1 | 37.4mm |
| d1 | 27.6mm |
| N | 7mm |
| S | 15.6mm |
| Dynamic load Cr | 12800 N |
| Static load C0r | 6600 N |
| Weight | 0.15 kg |
