SKU: GE90ES2RS.EU

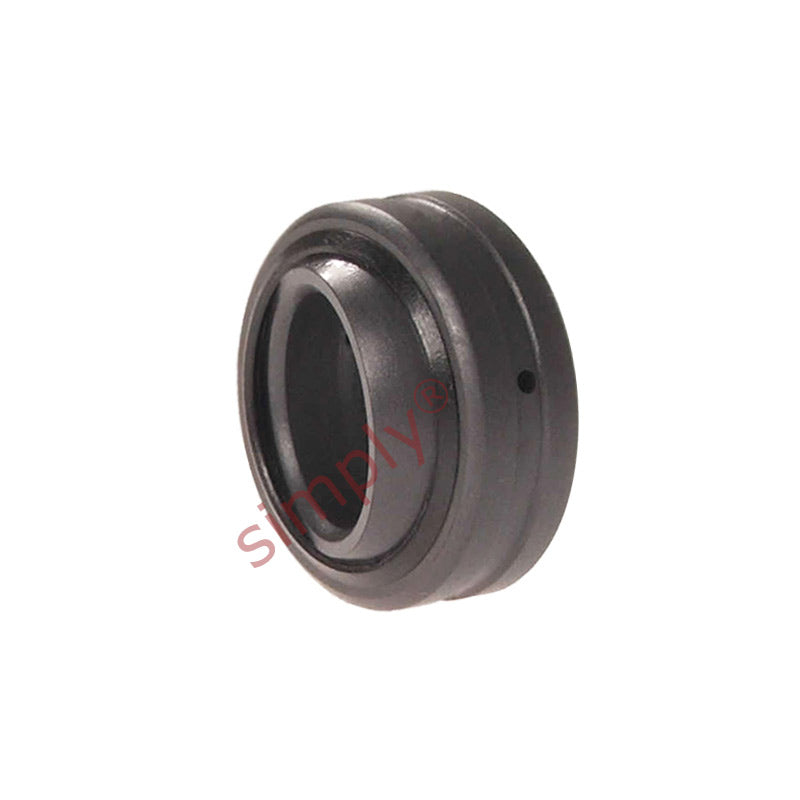

GE90ES2RS Rubber Sealed Spherical Plain Bearing 90x130x60x50mm
GE90ES2RS Rubber Sealed Spherical Plain Bearing 90x130x60x50mm
Regular price
Rs. 11,086.43
Regular price
Sale price
Rs. 11,086.43
Taxes included.
In stock
Price Break
10+
Rs. 9,866.92
19+
Rs. 9,312.60
29+
Rs. 9,201.74
39+
Rs. 9,090.87
49+
Rs. 8,980.01
74+
Rs. 8,869.14
99+
Rs. 8,314.82
199+
Rs. 8,203.96
249+
Rs. 8,093.09
499+
Rs. 7,982.23
999+
Rs. 7,760.50
Description
Description
|
Rubber Sealed Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel, rubber seals Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 130mm
- Width:
- 60mm
Technical
Technical
| d | 90mm |
|---|---|
| D | 130mm |
| B | 60mm |
| C | 50mm |
| dk | 115mm |
| rs min | 1mm |
| r1s min | 1mm |
| Angle α | 5° |
| Dynamic load Co | 488 kN |
| Static load Cor | 2440 kN |
| Weight | 2.75 kg |
