SKU: GE50-KRR-B-FA125.5-INA

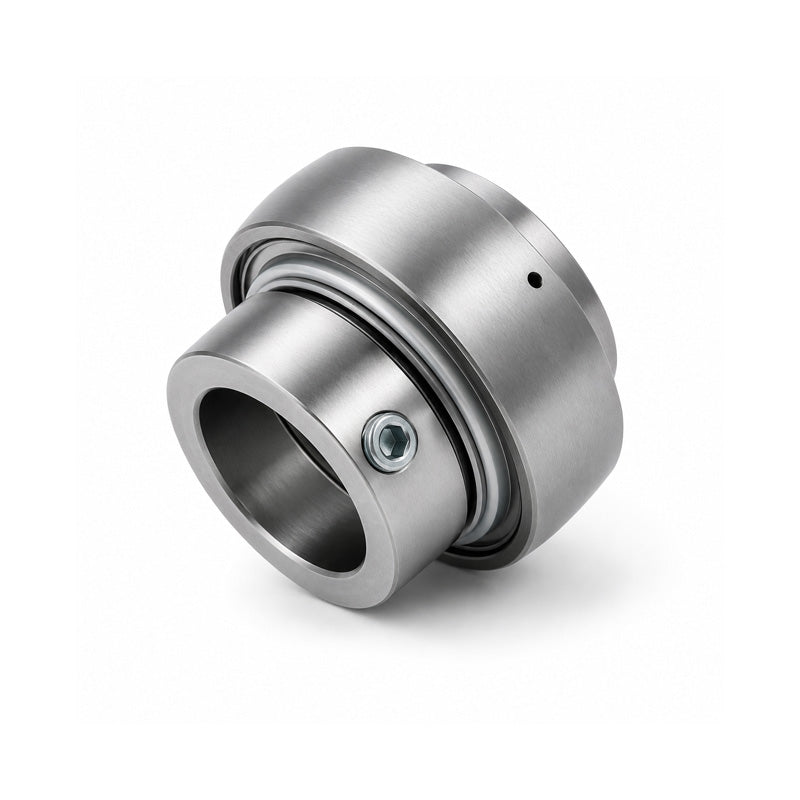

INA GE50XLKRRBFA125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with R Seals and Eccentric Collar 50x90x62.8mm
INA GE50XLKRRBFA125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with R Seals and Eccentric Collar 50x90x62.8mm
Regular price
Rs. 9,105.82
ex VAT
Regular price
Sale price
Rs. 9,105.82
ex VAT
In stock
Price Break
10+
Rs. 8,104.18
19+
Rs. 7,648.89
29+
Rs. 7,557.83
39+
Rs. 7,466.77
49+
Rs. 7,375.71
74+
Rs. 7,284.66
99+
Rs. 6,829.37
199+
Rs. 6,738.31
249+
Rs. 6,647.25
499+
Rs. 6,556.19
999+
Rs. 6,374.07
Couldn't load pickup availability
Description
Description
|
INA GE..KRR-B-FA125.5 Series Inserts: Bearing insert with spherical outer race, R seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment, anti-corrosion protection. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 62.8mm
- Type:
- Spherical Outer
Technical
Technical
| d | 50mm |
|---|---|
| Dsp | 90mm |
| B1 | 62.8mm |
| B | 49.2mm |
| C | 22mm |
| C2 | 26.4mm |
| Ca | 6.9mm |
| D1 | 77.3mm |
| d1 | 62.8mm |
| d3 max | 69mm |
| S | 24.6mm |
| W | 5mm |
| Dynamic load Cr | 35000 N |
| Static load C0r | 23200 N |
| Weight | 0.99 kg |
