SKU: GE45ES-2LS-SKF
SKF GE45ES2LS Heavy Duty Triple Seal Spherical Plain Bearing 45x68x25x32mm - Allow 2-3 Days
SKF GE45ES2LS Heavy Duty Triple Seal Spherical Plain Bearing 45x68x25x32mm - Allow 2-3 Days
Regular price
Rs. 8,506.85
Regular price
Sale price
Rs. 8,506.85
Taxes included.
Low stock
Price Break
5+
Rs. 8,421.78
10+
Rs. 8,081.51
20+
Rs. 7,911.37
50+
Rs. 7,656.17
100+
Rs. 7,486.03
500+
Rs. 7,060.69
1000+
Rs. 5,954.80
Description
Description
|

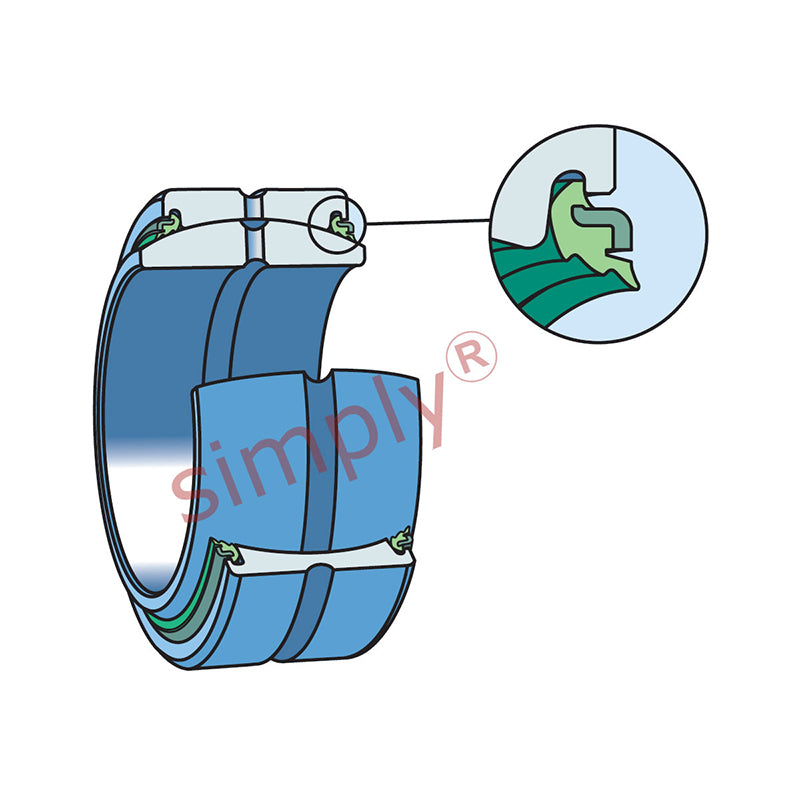

SKF GE..ES-2LS Series Spherical Plain Bearings: This series is classed as radial spherical plain bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these spherical plain bearings are fitted with a heavy duty triple lip seal to prevent ingress of dirt and moisture and require maintenance from time to time in the form of re-lubrication via an annular lubrication groove around its outer and inner rings. Dependent on installation design the lubricant may be passed through the housing or spindle directly into the bearing at any point around the groove which has small holes to direct the lubricant onto the mating surfaces. These are metric sized spherical plain bearings. The bearings are manganese phosphated and the sliding contact surface is then treated with a running-in lubricant. This reduces friction and wear during the running-in period. Application: Suitable for heavy static, shock or alternating loads. A characteristic of SKF steel / steel spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load Benefits: Re-lubricate-able, heavy duty triple lip sealed. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 68mm
- Width:
- 32mm
Technical
Technical

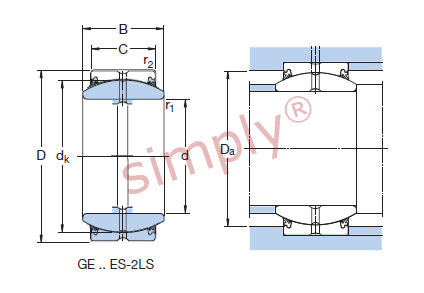

| d | 45mm |
|---|---|
| D | 68mm |
| B | 32mm |
| C | 25mm |
| Max misalignment angle | 7 degrees |
| Dynamic load | 127 kN |
| Static load | 637 kN |
| dk | 60mm |
| b | 4.6mm |
| b1 | 4.6mm |
| M | 3mm |
| r1 min | 0.6mm |
| r2 min | 1mm |
| da min | 49.4mm |
| da max | 50.8mm |
| Da max | 63.6mm |
| Da min | 61mm |
| ra max | 0.6mm |
| rb max | 1mm |
| Weight | 0.427 kg |
