SKU: GE45-KRR-B-FA125.5-INA

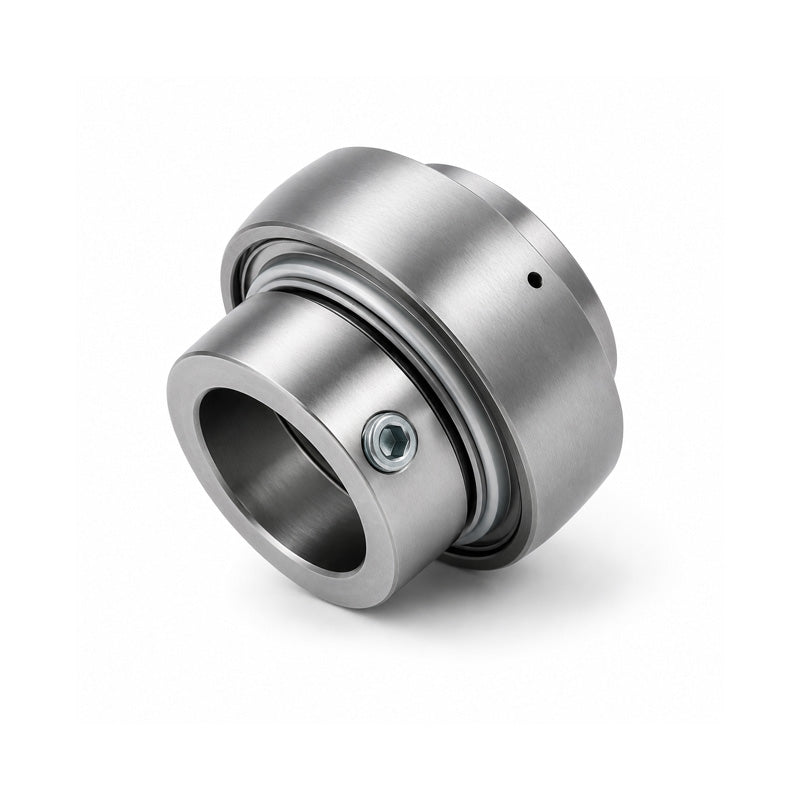

INA GE45XLKRRBFA125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with R Seals and Eccentric Collar 45x85x56.5mm
INA GE45XLKRRBFA125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with R Seals and Eccentric Collar 45x85x56.5mm
Regular price
Rs. 8,596.18
ex VAT
Regular price
Sale price
Rs. 8,596.18
ex VAT
In stock
Price Break
10+
Rs. 7,650.60
19+
Rs. 7,220.79
29+
Rs. 7,134.83
39+
Rs. 7,048.87
49+
Rs. 6,962.91
74+
Rs. 6,876.94
99+
Rs. 6,447.14
199+
Rs. 6,361.17
249+
Rs. 6,275.21
499+
Rs. 6,189.25
999+
Rs. 6,017.33
Couldn't load pickup availability
Description
Description
|
INA GE..KRR-B-FA125.5 Series Inserts: Bearing insert with spherical outer race, R seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment, anti-corrosion protection. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 56.5mm
- Type:
- Spherical Outer
Technical
Technical
| d | 45mm |
|---|---|
| Dsp | 85mm |
| B1 | 56.5mm |
| B | 42.9mm |
| C | 22mm |
| C2 | 26.4mm |
| Ca | 6.4mm |
| D1 | 72.3mm |
| d1 | 57.9mm |
| d3 max | 63mm |
| S | 21.4mm |
| W | 5mm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 20400 N |
| Weight | 0.83 kg |
