SKU: GE35-KLL-B-INA
INA GE35XLKLLB Metric Spherical Outer Bearing Insert with L Seals and Eccentric Collar 35x72x51.3mm
INA GE35XLKLLB Metric Spherical Outer Bearing Insert with L Seals and Eccentric Collar 35x72x51.3mm
Regular price
Rs. 6,046.71
ex VAT
Regular price
Sale price
Rs. 6,046.71
ex VAT
In stock
Price Break
10+
Rs. 5,381.57
19+
Rs. 5,079.24
29+
Rs. 5,018.77
39+
Rs. 4,958.30
49+
Rs. 4,897.84
74+
Rs. 4,837.37
99+
Rs. 4,535.03
199+
Rs. 4,474.57
249+
Rs. 4,414.10
499+
Rs. 4,353.63
999+
Rs. 4,232.70
Couldn't load pickup availability
Description
Description
|

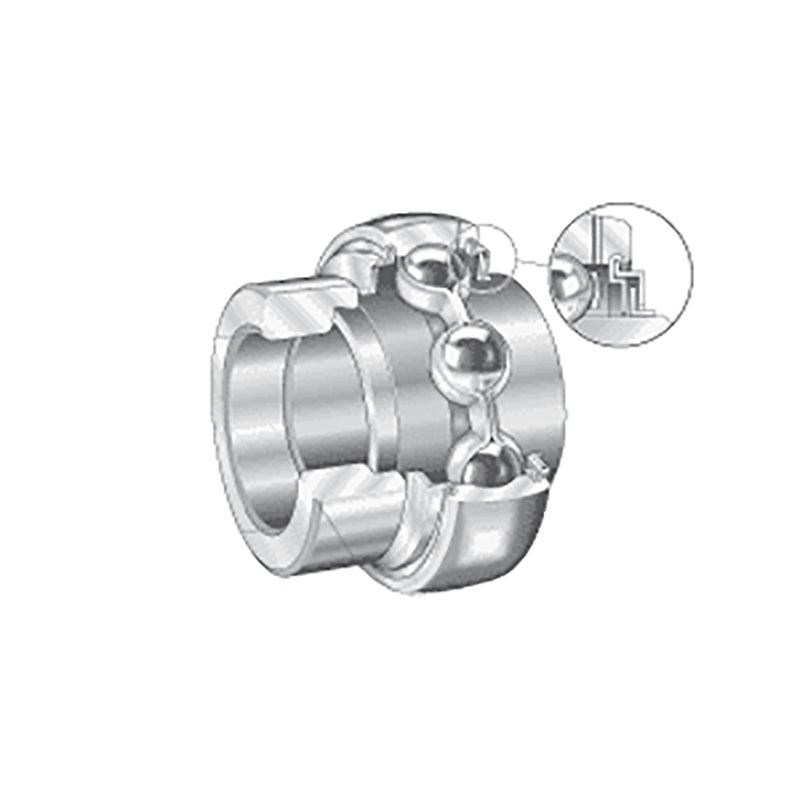

INA GE..KLL-B Series Inserts: Bearing insert with spherical outer race, L seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 51.3mm
- Type:
- Spherical Outer
Technical
Technical
| d | 35mm |
|---|---|
| Dsp | 72mm |
| B1 | 51.3mm |
| B | 37.7mm |
| C | 19mm |
| C2 | 25.4mm |
| Ca | 5.6mm |
| D1 | 60.3mm |
| d1 | 46.8mm |
| d3 max | 51mm |
| S | 18.8mm |
| W | 5mm |
| Dynamic load Cr | 25500 N |
| Static load C0r | 15300 N |
| Weight | 0.56 kg |
