SKU: GE260ES2RS.EU

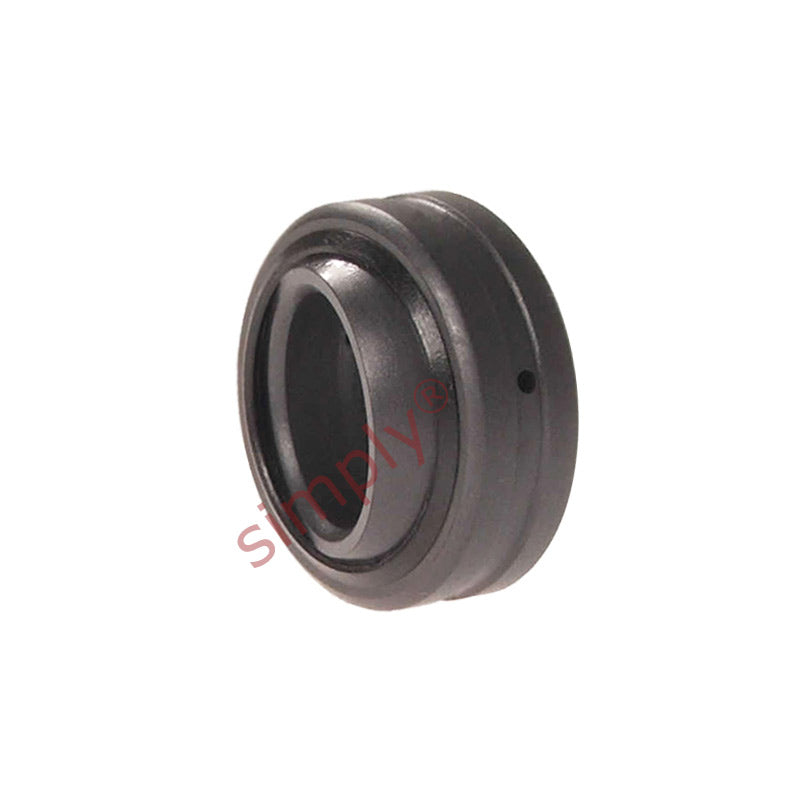

GE260ES2RS Rubber Sealed Spherical Plain Bearing 260x370x150x110mm
GE260ES2RS Rubber Sealed Spherical Plain Bearing 260x370x150x110mm
Regular price
Rs. 274,637.38
Regular price
Sale price
Rs. 274,637.38
Taxes included.
In stock
Price Break
10+
Rs. 244,427.27
19+
Rs. 230,695.40
29+
Rs. 227,949.03
39+
Rs. 225,202.65
49+
Rs. 222,456.28
74+
Rs. 219,709.90
99+
Rs. 205,978.04
199+
Rs. 203,231.66
249+
Rs. 200,485.29
499+
Rs. 197,738.91
999+
Rs. 192,246.17
Description
Description
|
Rubber Sealed Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel, rubber seals Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 260mm
- Outside Diameter:
- 370mm
- Width:
- 150mm
Technical
Technical
| d | 260mm |
|---|---|
| D | 370mm |
| B | 150mm |
| C | 110mm |
| dk | 325mm |
| rs min | 1.1mm |
| r1s min | 1.1mm |
| Angle α | 7° |
| Dynamic load Co | 3030 kN |
| Static load Cor | 15190 kN |
| Weight | 51.54 kg |
