SKU: GE20-KLL-B-INA

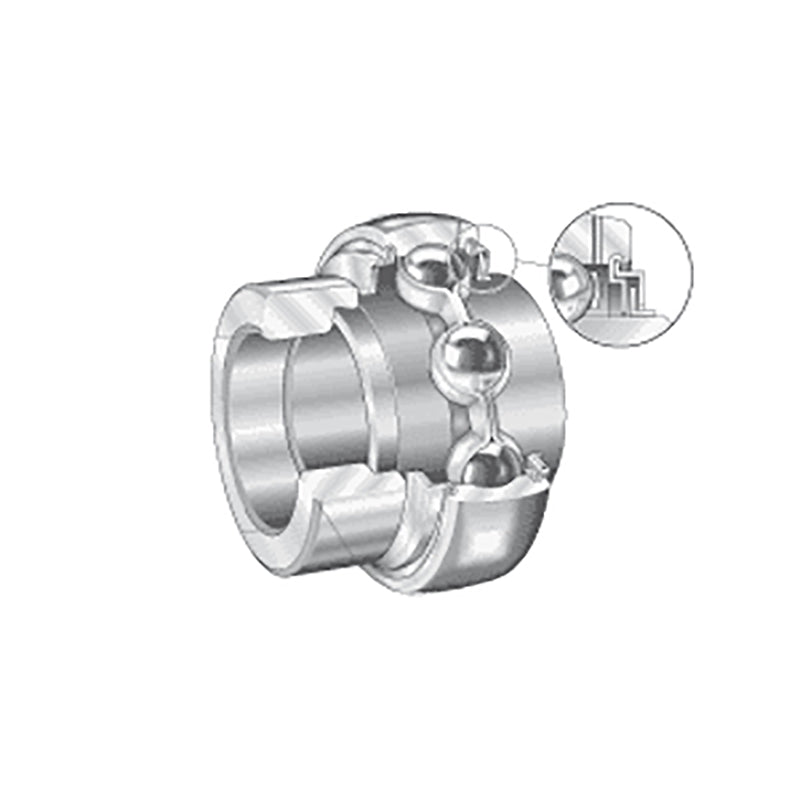

INA GE20XLKLLB Metric Spherical Outer Bearing Insert with L Seals and Eccentric Collar 20x47x43.7mm
INA GE20XLKLLB Metric Spherical Outer Bearing Insert with L Seals and Eccentric Collar 20x47x43.7mm
Regular price
Rs. 3,936.58
Regular price
Sale price
Rs. 3,936.58
Taxes included.
In stock
Price Break
10+
Rs. 3,503.56
19+
Rs. 3,306.73
29+
Rs. 3,267.36
39+
Rs. 3,228.00
49+
Rs. 3,188.63
74+
Rs. 3,149.26
99+
Rs. 2,952.44
199+
Rs. 2,913.07
249+
Rs. 2,873.70
499+
Rs. 2,834.34
999+
Rs. 2,755.61
Description
Description
|
INA GE..KLL-B Series Inserts: Bearing insert with spherical outer race, L seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 43.7mm
Technical
Technical
| d | 20mm |
|---|---|
| Dsp | 47mm |
| B1 | 43.7mm |
| B | 34.1mm |
| C | 14mm |
| C2 | 16.6mm |
| Ca | 4mm |
| D1 | 37.4mm |
| d1 | 27.6mm |
| d3 max | 33mm |
| S | 17.1mm |
| W | 3mm |
| Dynamic load Cr | 12800 N |
| Static load C0r | 6600 N |
| Weight | 0.2 kg |
