SKU: GE20-ET-2RS-INA

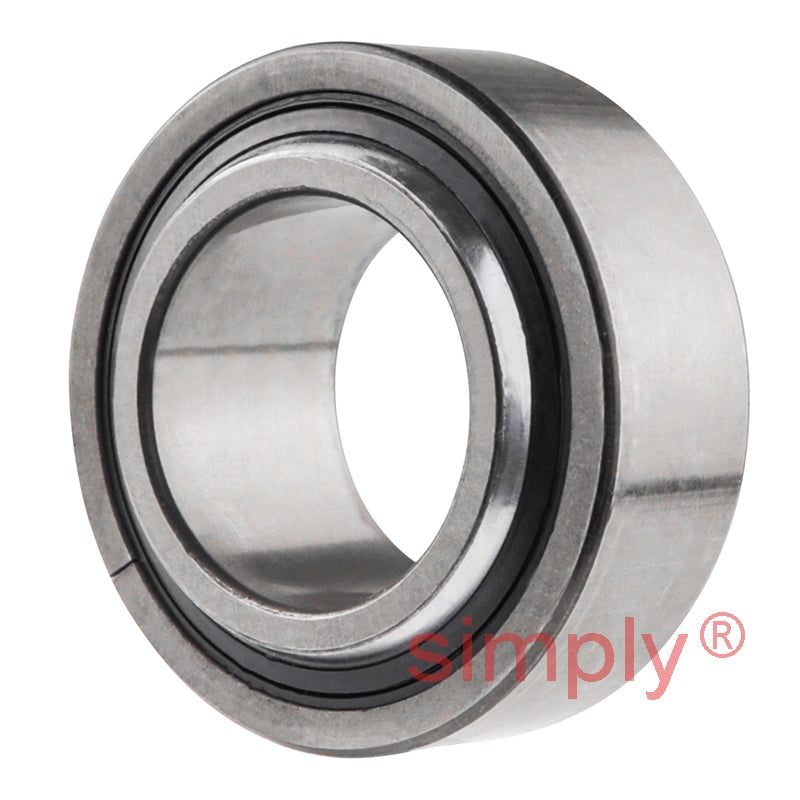

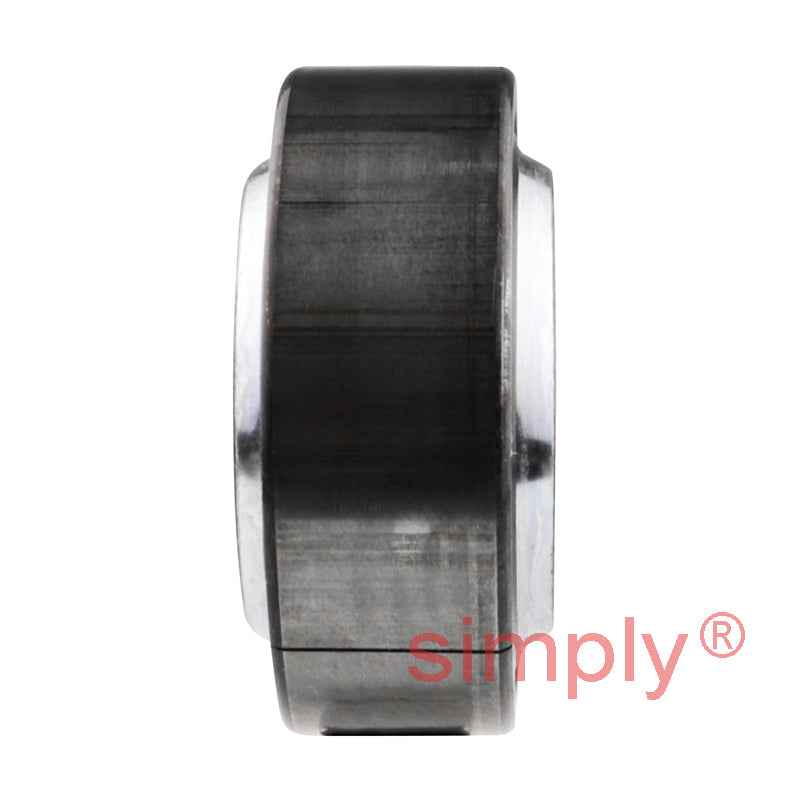

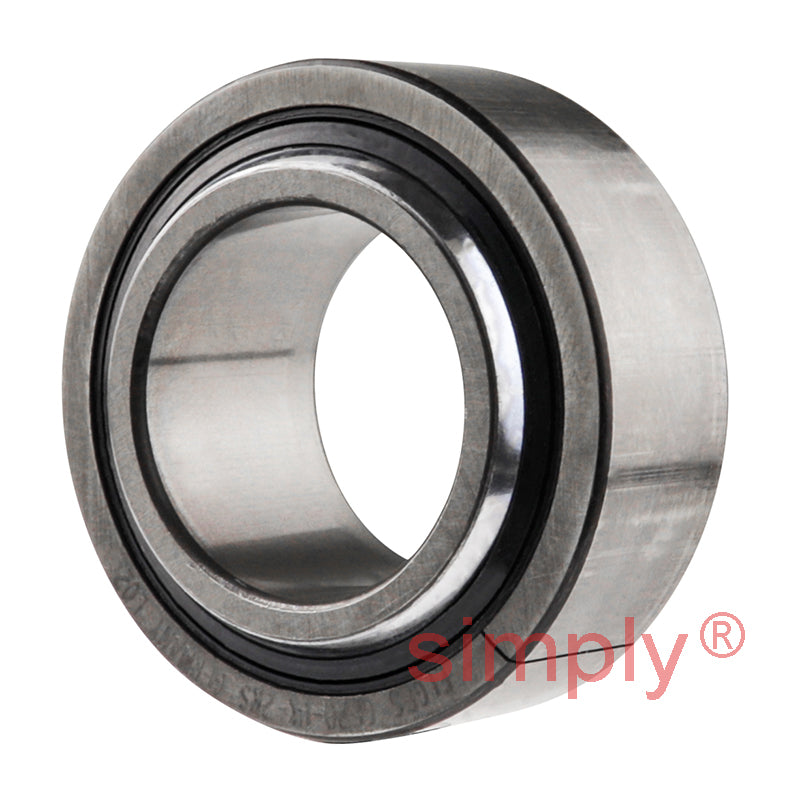

INA GE20ET2RS Steel / PTFE Spherical Plain Bearing 20x35x16mm
INA GE20ET2RS Steel / PTFE Spherical Plain Bearing 20x35x16mm
Regular price
Rs. 5,872.22
Regular price
Sale price
Rs. 5,872.22
Taxes included.
In stock
Price Break
10+
Rs. 5,226.28
19+
Rs. 4,932.66
29+
Rs. 4,873.94
39+
Rs. 4,815.22
49+
Rs. 4,756.50
74+
Rs. 4,697.78
99+
Rs. 4,404.17
199+
Rs. 4,345.44
249+
Rs. 4,286.72
499+
Rs. 4,228.00
999+
Rs. 4,110.55
Description
Description
GE..-ET Series Spherical Plain Bearings: These maintenance-free spherical plain bearings are suitable for high load appliations where there is limited oscillating movement.
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 35mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 20mm (Tolerance: 0/-0.01) |
|---|---|
| D | 35mm (Tolerance: 0/-0.011) |
| B | 16mm (Tolerance: 0/-0.12) |
| Radial internal clearance | 0-0.04mm |
| C | 12mm (Tolerance: 0/-0.24) |
| Da min | 27.5mm |
| da max | 24.1mm |
| dk | 29mm |
| Chamfer dimension r1s min | 0.3mm |
| Chamfer dimension r2s min | 0.3mm |
| a | 9° |
| Mass | 0.06 kg |
| Basic dynamic load, radial Cr | 67900 N |
| Basic static load, rating Cor | 113000 N |
