SKU: GE15UK-EU

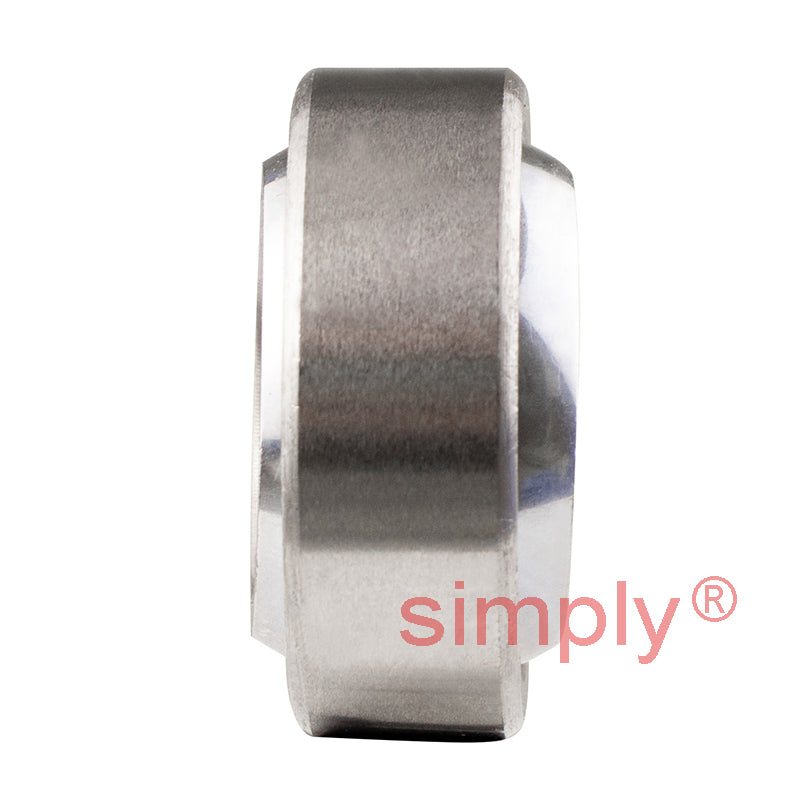

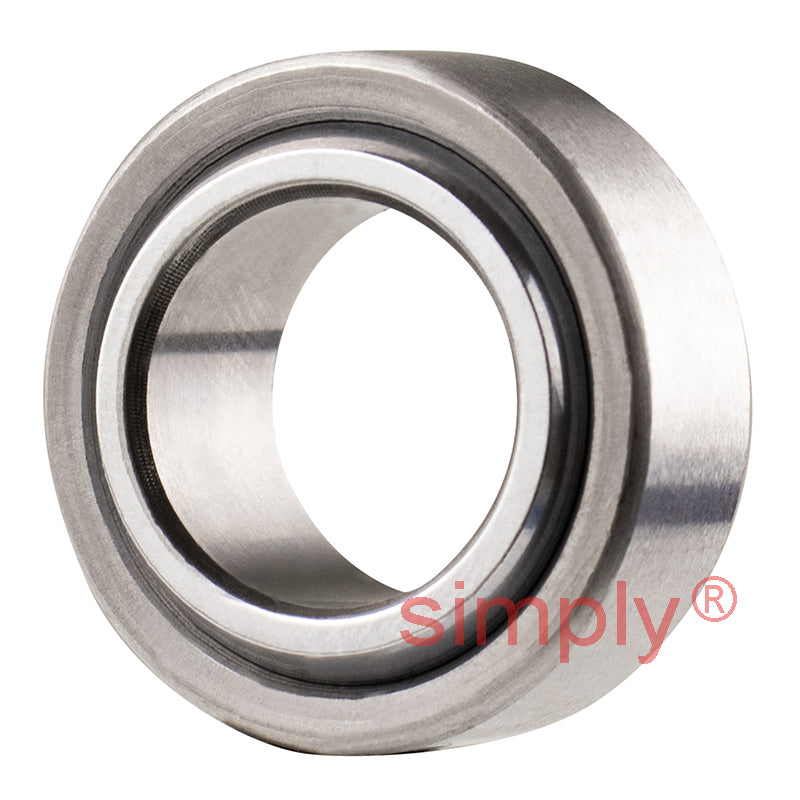

GE15UK Steel / PTFE Spherical Plain Bearing 15x26x12x9mm
GE15UK Steel / PTFE Spherical Plain Bearing 15x26x12x9mm
Regular price
Rs. 783.47
Regular price
Sale price
Rs. 783.47
Taxes included.
In stock
Price Break
10+
Rs. 697.29
19+
Rs. 658.11
29+
Rs. 650.28
39+
Rs. 642.45
49+
Rs. 634.61
74+
Rs. 626.78
99+
Rs. 587.60
199+
Rs. 579.77
249+
Rs. 571.93
499+
Rs. 564.10
999+
Rs. 548.43
Description
Description
GE..-UK Series Spherical Plain Bearings: These maintenance-free spherical plain bearings are suitable for high load appliations where there is limited oscillating movement.
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 26mm
- Width:
- 12mm
Technical
Technical
| d | 15mm (Tolerance: 0/-0.008) |
|---|---|
| D | 26mm (Tolerance: 0/-0.009) |
| B | 12mm (Tolerance: 0/-0.12) |
| Radial internal clearance | 0-0.04mm |
| C | 9mm (Tolerance: 0/-0.24) |
| Da min | 21mm |
| da max | 18.4mm |
| dk | 22mm |
| Chamfer dimension r1s min | 0.3mm |
| Chamfer dimension r2s min | 0.3mm |
| a | 8° |
| Mass | 0.027 kg |
| Basic dynamic load, radial Cr | 17800 N |
| Basic static load, rating Cor | 44600 N |
